48V 80Ah Lithium LiFePO4 AGV Battery Pack
Advantages of CSiT AGV battery pack
Cycle life is over 1200 times, if you need longer cycle life, please send inquiry to us to check.
Real capacity. The battery rated capacity is 80Ah, and the min capacity is 78Ah, we have reputation in the industry and never exaggerate the capacity.
Grade A prismatic battery cells. We use only grade A battery cells to make sure a good working performance.
Wide application. CSIT 48V lithium rechargeable battery pack could be widely used for difference devices such as energy storage system, UPS back up, AGV forklift, etc.
Customized. CSIT engineer team is skillful and most of them have over 20 years experience in this filed, we can customize the battery according to your request, such as capacity, voltage, dimension, cable length, connectors, discharge current, LOGO, etc.
Easy to install. The 48V 80Ah lithium battery pack is with customized connector, it’s easy to install and remove from your device.
Safe and reliable. All of our lithium battery packs are with BMS protection to protect the battery from over current, over charging, over discharging, over voltage and short circuit, what’s more, if you have special request like temperature protection, reverse connection protection, we can also make it.
Technical Data sheet
| Battery Model | IF4880 |
| Nominal Voltage | 51.2V |
| Nominal Capacity | 80Ah |
| Rated Energy | 4096Wh |
| Dimension | Customized |
| Configuration | 16S1P |
| Working Voltage Range | 40~57.6V |
| Standard Charge Current | 16A |
| Max. Charge Current | 40A |
| Standard Discharge Current | 16A |
| Max. Disharge Current | 200A |
| Connector | Customized |
| Weight | appx. 32.5kgs |
| Charge Voltage | 57.6V |
| Dischage Cut-off Voltage | 40V |
| Charge Temperature | 0~45°C |
| Discharge Temperature | -20~65°C |
| Cyle Life | ≥1200 times |
Product details

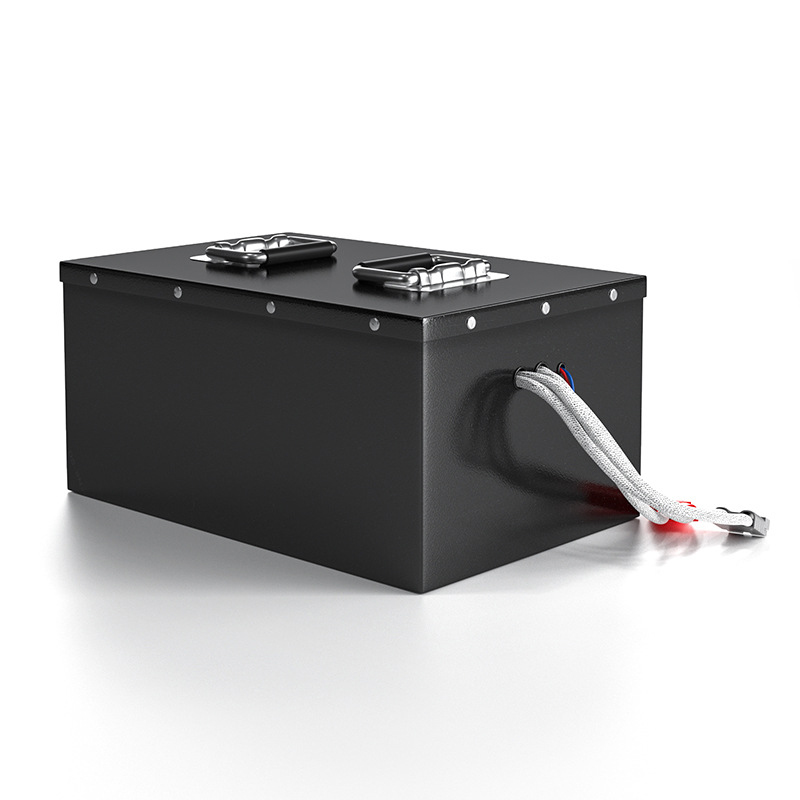

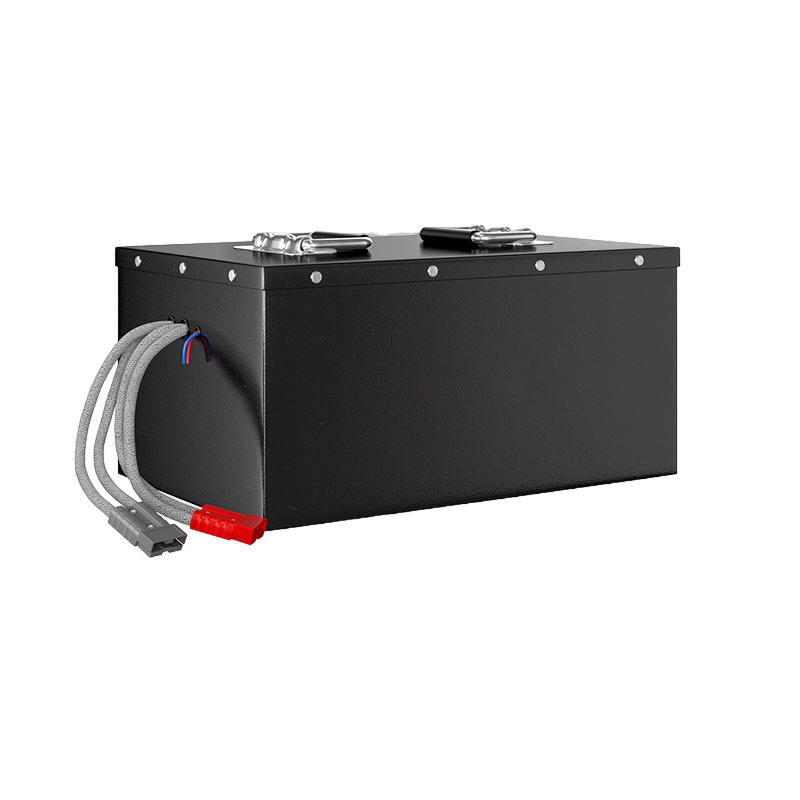

CSiT lithium AGV battery pack details is as below:
Black iron housing: at least 1.8mm thickness.
Stainless steel: durable and ergonomic.
Connector: Tow Anderson connectors for charging and discharging.
Communication cable: support CAN communication protocol, customized.
Application
CSiT AGV battery can mainly be used for residential energy storage system ,UPS back up and AGV forklift.
