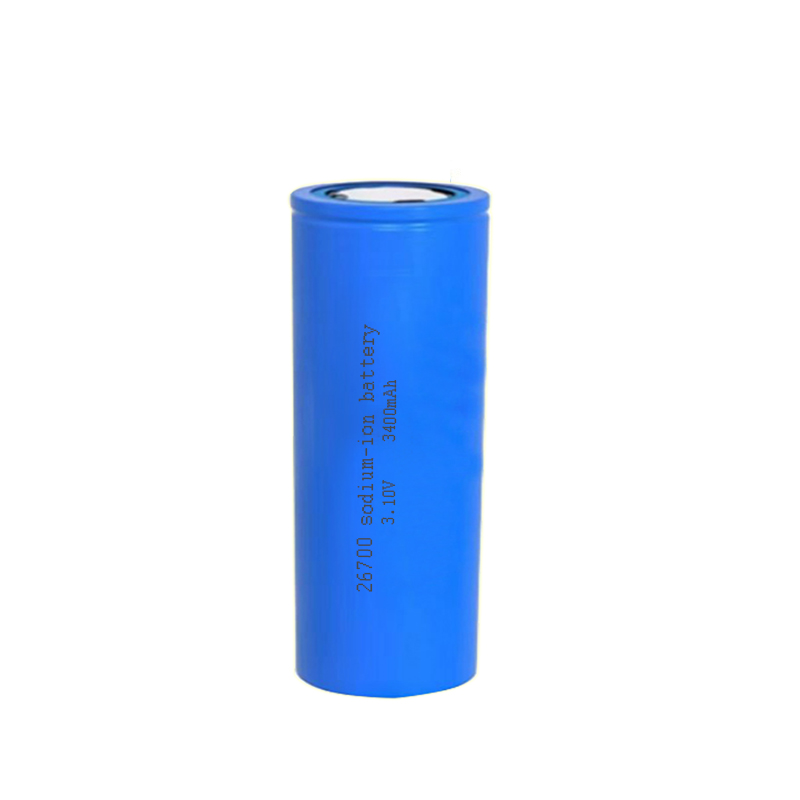

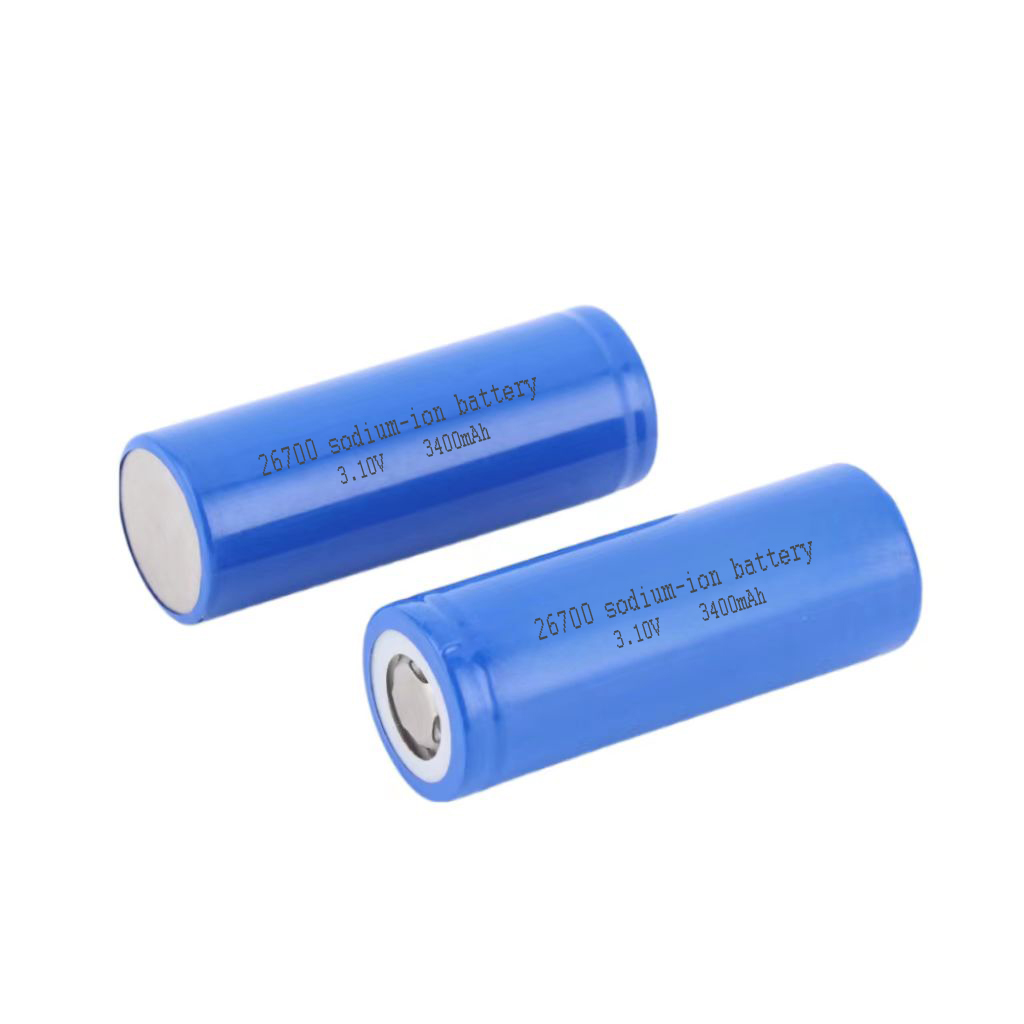

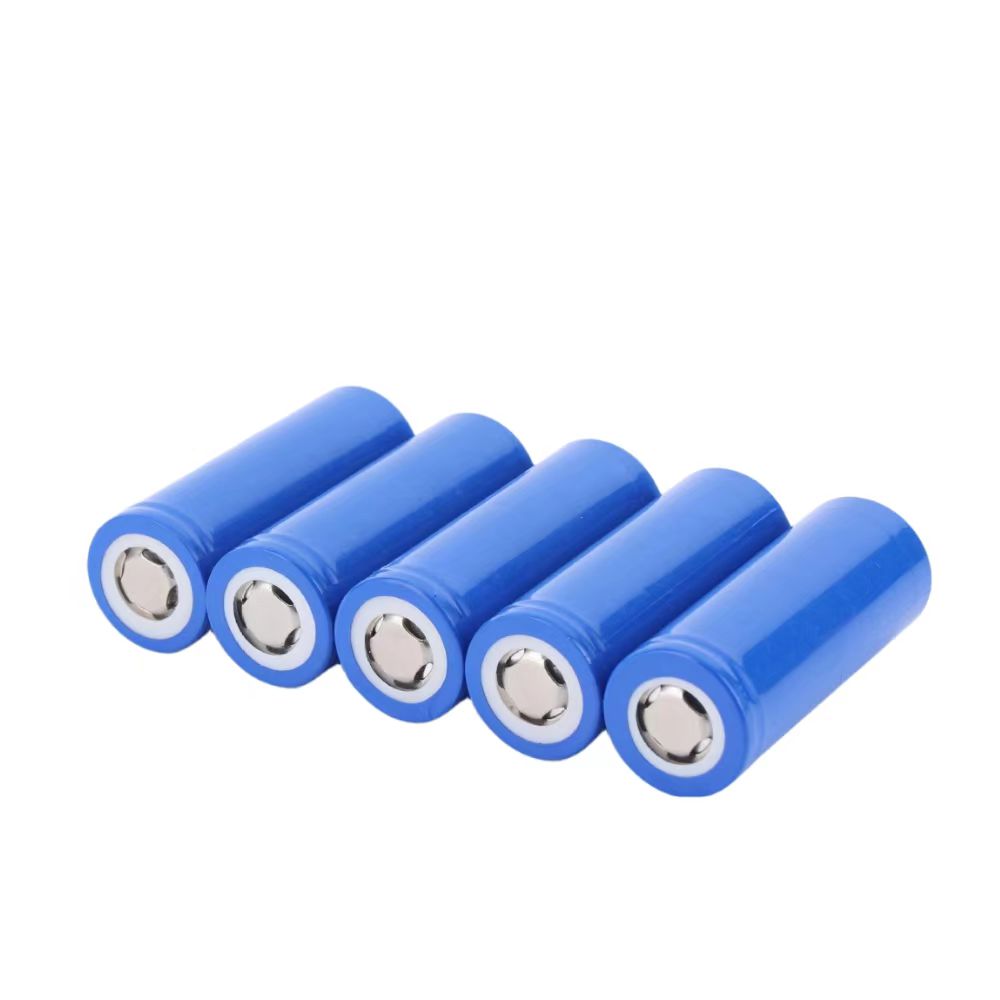

High discharge rate 26700 sodium ion battery for e bike motorcycle
Main Feature of CSiT 26700 sodium ion cells:
● Non-flammable. Sodium-ion batteries exhibit good chemical and thermal stability. When subjected to extreme tests such as overcharge, over-discharge, short circuit, and nail penetration, sodium-ion batteries do not catch fire or explode, and their thermal runaway temperature is much higher than that of lithium batteries.
● Could discharge to 0V. This advantage allows sodium-ion batteries to be safely discharged to 0V, making them more secure during storage and transportation, without the risk of over-discharge
● Wide discharge temperature range. Sodium ion battery can be discharged at the temperature of -40~80℃,even at -40℃, the discharge capacity is over 75%, which is much better than lithium ion battery.
● More environmental. The negative electrode of sodium-ion batteries can use aluminum foil as the current collector, which is cheaper and more environmentally friendly than copper foil. From production to disposal, sodium-ion batteries have a relatively smaller environmental impact throughout their entire lifespan.
Technical Datasheet
| Cell Model | 26700-3100mAh | 26700-3400mAh |
| Nominal Voltage | ||
| Type | High Rate | High Capacity |
| Nominal Capacity | 3100mAh | 3400mAh |
| Energy Density | ≥110Wh/kg | ≥120Wh/kg |
| Volumetric Energy Density | ≥250Wh/L | ≥270Wh/L |
| Dimension | H*D=71*26.4mm | H*D=71*26.4mm |
| Inner Resistance | ≤20mΩ | ≤20mΩ |
| Weight | Appx.82g | Appx.82g |
| Cyle Life | ≥3000 times | ≥2000 times |
| Standard Charge Current | 0.5C | |
| Standard Discharge Current | 0.5C | |
| Max Con. Discharge Current | 15C | 5C |
| Pulse Discharge Rate | 20C | 15C |
| Shape | Cylinder | |
| Charge Voltage | 3.95V | |
| Dischage Cut-off Voltage | 1.50V | |
| Working Voltage Range | 1.5~3.95V | |
| Charge Method | CC/CV | |
| -20℃ Capacity retention | 90% | |
| -40℃ Capacity retention | 75% | |
| Charge Temperature | -10~45°C | |
| Discharge Temperature | -40~80°C | |
| Storage Temperature | Less than 1 year:-10~25°C; Less than 3 months:-10~40°C | |
Product Details
CSiT26700 sodium battery includes the positive pole, negative pole, electrolyte, and current collector:
Positive pole: layered metal oxide
Negative pole: The negative materials mainly include hard carbon.
Separator:The main materials of the separator include polyethylene (PE) and polypropylene (PP) membranes.
Electrolyte:NaClO4、NaPF6
Application
CSiT 26700 sodium cells can be mainly used for:
Electric bike, electric motorcycle;
Tricycle;
Golf cart, boat, RV campers;
Power tools such as drill, leaf trimmer, lawn mower, etc.
Medical device.
