Low voltage 5kWh Lock - buckled stacked inverter

Rated output power: 5kw

Type: single phase

Output frequency: 50-60Hz

Nominal output voltage: 220/230/240VAC

Battery voltage request: 48V

Communication Protocol: USB&RS232

Protection rating: IP40

MPPT controller: YES

Application: Stacked energy storage system

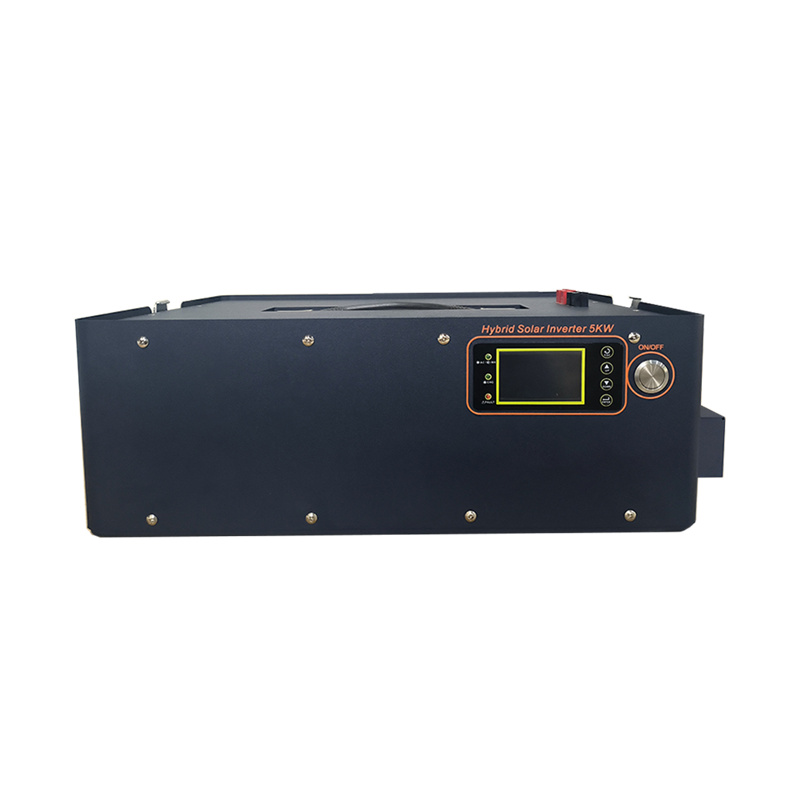

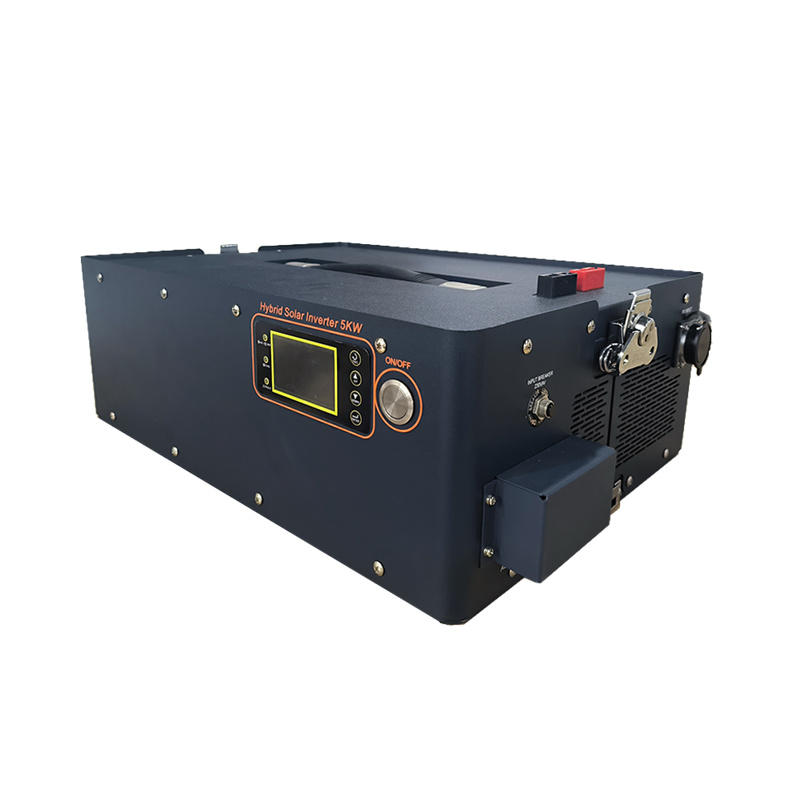

CSiT Low voltage 5kw single phase inverter is stacked type, save space, This hybrid PV inverter can provide power to connected loads by utilizing PV power, utility power and battery power.

product details

Advantages of CSiT lock - stacking solar inverter:

● Space - saving and Compact: The lock - stacking design enables the inverters to be arranged closely, achieving an efficient layout in limited space and saving floor area.

● High Efficient power generation, dual MPPT, power generation efficiency up to 93%.

● It is a series - supporting product with the CSIT 5 kWh lock - stacking battery, offering even more stable performance.

● Installation and maintenance are extremely convenient: The locking mechanism simplifies the installation process, enabling rapid assembly. Moreover, it allows for easy disassembly of individual devices for maintenance.

Technical Datasheet

MODEL	5KW
RATED OUPUT POWER	5000W
PV INPUT (DC)
Max. PV Power	5000W
Max. PV Array Open Circuit Voltage	450 VDC
MPPT Range @ Operating Voltage	120 VDC~430 VDC
Number of MPP Tracker	1
GRID-TIE OPERATION
GRID OUTPUT (AC)
Nominal Output Voltage	220/230/240 VAC
Feed-in Grid Voltage Range	195.5~253 VAC @India regulation 184 ~ 264.5 VAC @Germany regulation 184 ~ 264.5 VAC @South America regulation
Feed-in Grid Frequency Range	49~51Hz @India regulation 47.5~51.5Hz @Germany regulation 57~62Hz @South America
Nominal Output Current	21.7A
Power Factor Range	>0.99
Maximum Conversion Efficiency (DC/AC)	95%
OFF-GRID, HYBRID OPERATION
GRID INPUT
Acceptable Input Voltage Range	90 - 280 VAC or 170 - 280 VAC
Frequency Range	50 Hz/60 Hz (Auto sensing)
Rating of AC Transfer Relay	40A
BATTERY MODE OUTPUT (AC)
Nominal Output Voltage	220/230/240 VAC
Output Waveform	Pure Sine Wave
Efficiency (DC to AC)	93%
BATTERY & CHARGER
Nominal DC Voltage	48 VDC
Maximum Charging Current (from Grid)	80A
Maximum Charging Current (from PV)	80A
Maximum Charging Current	80A
GENERAL
Dimension, D X W X H (mm)	522 x 350 x 173
Net Weight (kgs)	15
INTERFACE
Parallel-able	Yes
External Safety Box (Optional)	Yes
Communication	USB or RS232/Dry-Contact
ENVIRONMENT
Humidity	0 ~ 90% RH (No condensing)
Operating Temperature	-10°C to 50°C

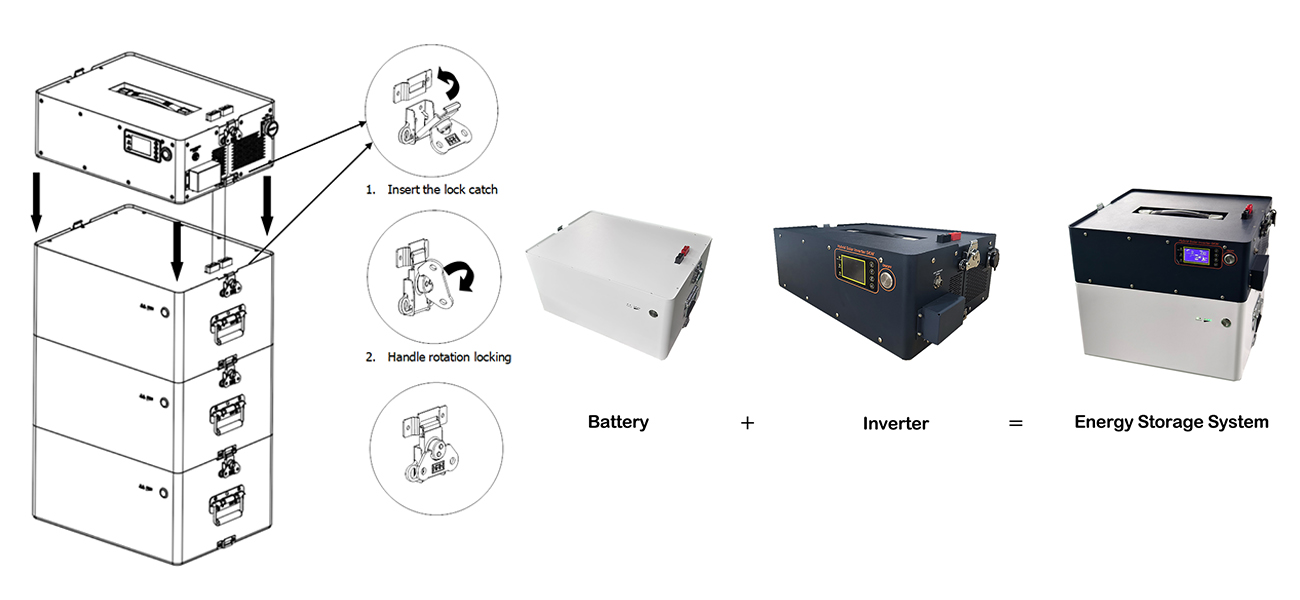

How to connect with the battery?

This battery pack is connected to a hybrid PV inverter and can use PV power, grid power and battery power to connect with loading requirement electrical part.

Please follow below steps to implement battery connection:

Lock-in superposition inverter product overview

Supports single-phase voltage regulation within the range of 220, 230, and 240Vac.

Provides 2 charging modes: PV only, PV and AC hybrid charging

It has two output modes: mains bypass and inverter output, and has uninterruptible power supply function

LCD large screen dynamic flow chart design, easy to understand system data and operating status

360° protection, with complete short circuit protection, over-current protection, over-voltage protection, overload protection, etc.

Support USB, RS485 communication

Application

The 48V 51.2V lithium ion battery can be mainly used for residential ESS(energy storage system) to provide back up power for home appliances including refrigerators, televisions, air conditioners, fans, etc. Using household energy storage systems can improve energy efficiency, address power outage risks, and optimize electricity costs.

The single phase solar inverter can be also mainly used for residential ESS(energy storage system), commercial venue, communication base station, UPS system, etc.
