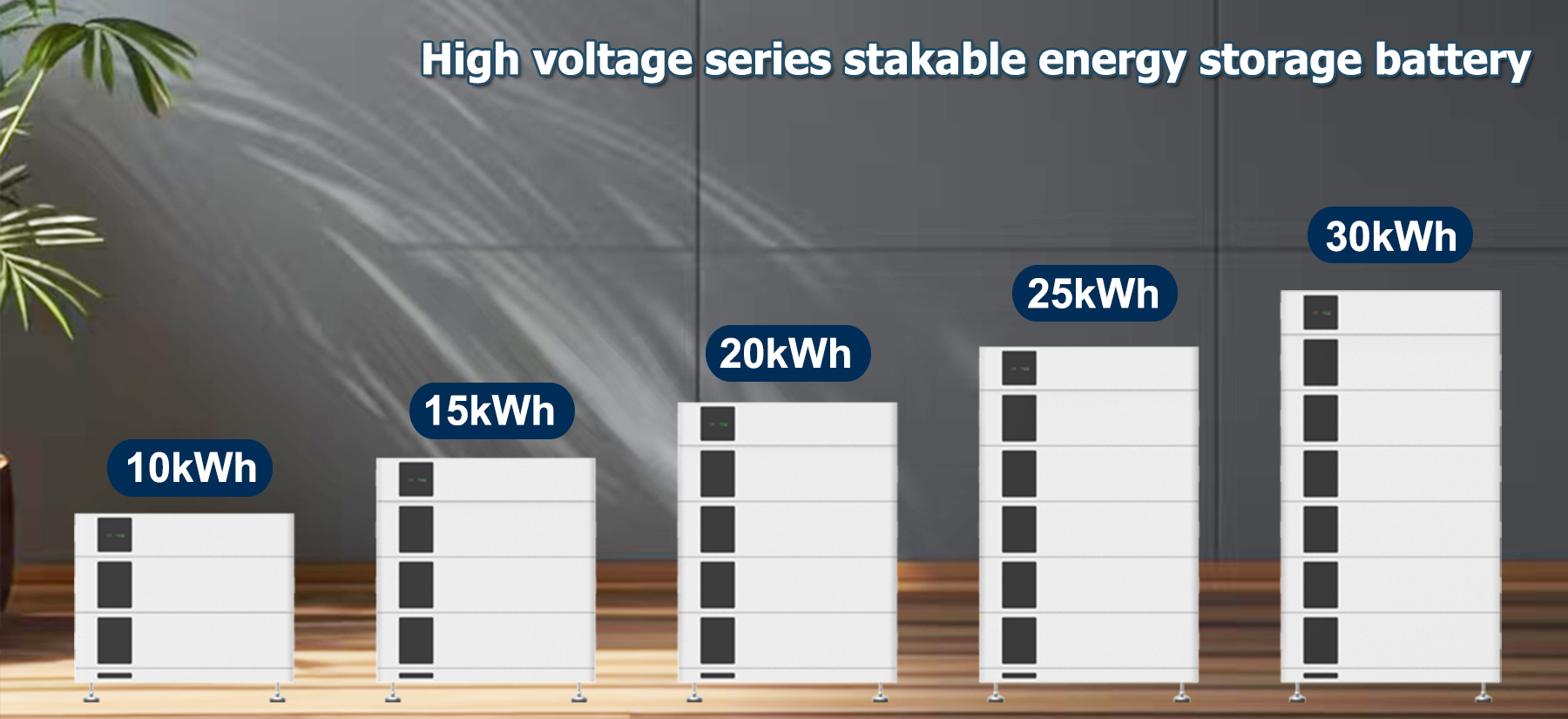

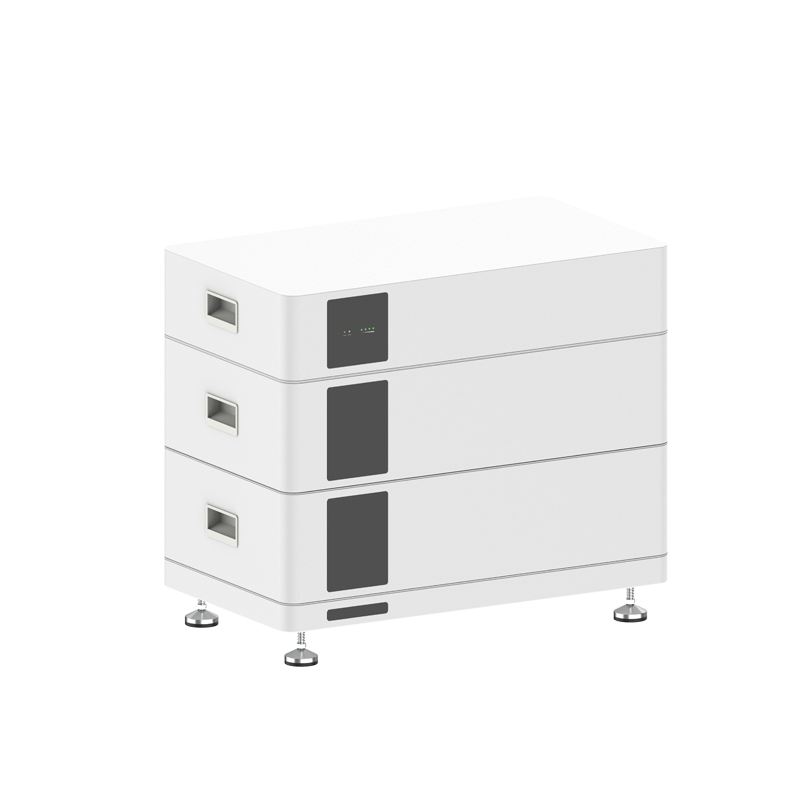

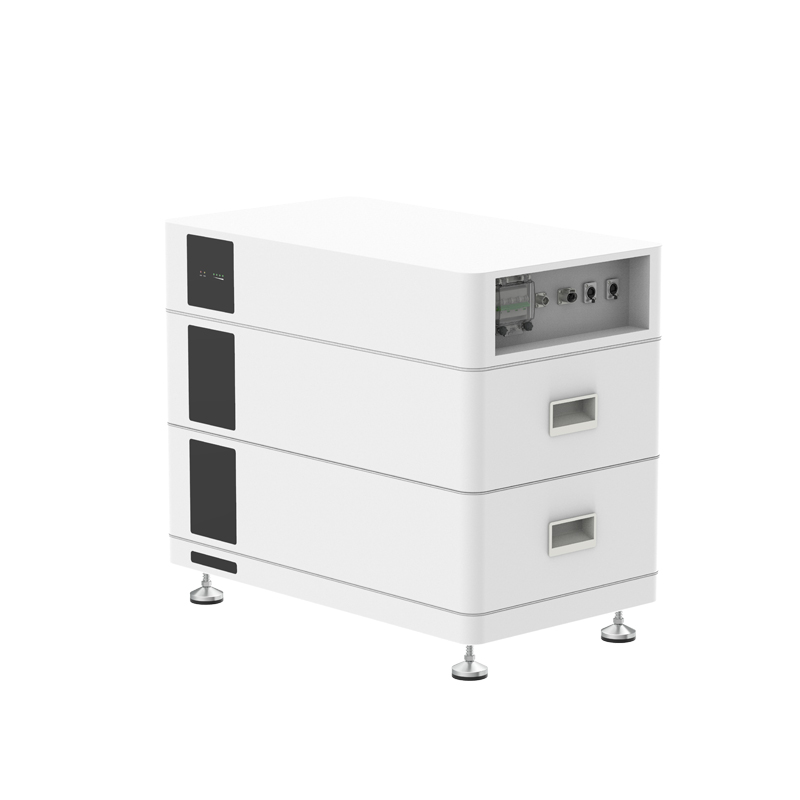

5kWh 10kWh 20kWh 30kWh high voltage iron phosphate lithium battery for power storage systems
Main Feature of CSiT high voltage iron phosphate lithium battery.
High compatibility. It’s compatible with lots of famous inverer brands such as PACE / PYLON / Growatt / Voltronic / Schneider / Luxpowertek / WOW / VISION / GoodWe / SMA / Sorotec / STUDER / SofarSolar / GINLONG / MUST / Victron, etc.
Reliable LFP cells with over 6000 times cycle life to provide over 15 years life span.
Easy to install and save space. Just plug and play.
IP65 waterproof，can be installed outdoor.
With smart BMS to optimize the work performance and protect the battery.
High voltage design to provide more stable electricity back up for your home appliances.
Technical Datasheet

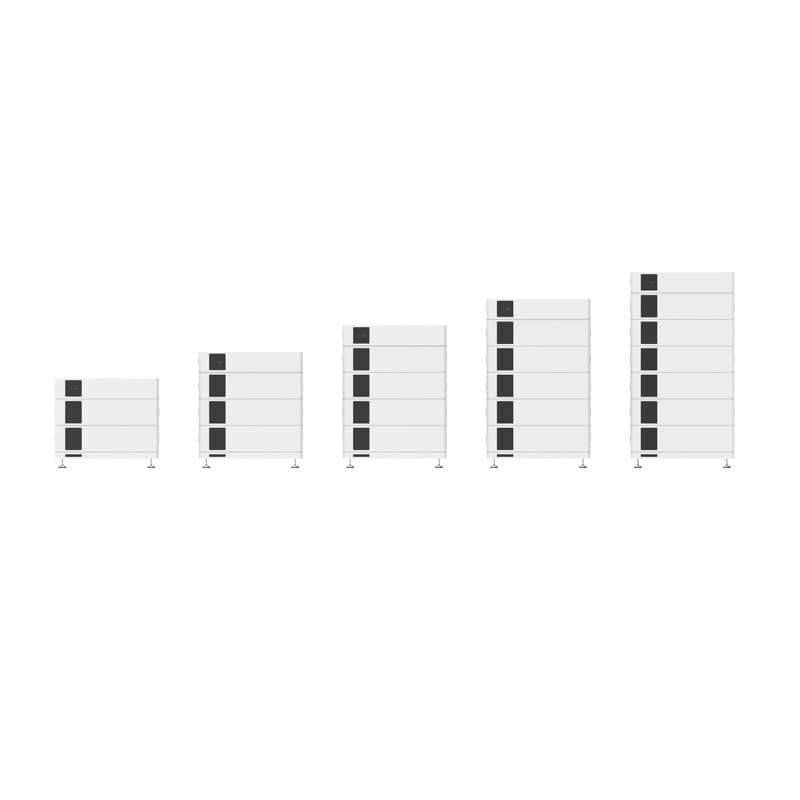

| Model | FHB-10KHV-01 | FHB-15KHV-01 | FHB-20KHV-01 | FHB-25KHV-01 | FHB-30KHV-01 |
| Module Quantity | 2 | 3 | 4 | 5 | 6 |
| Capacity | 10 kWh | 15 kWh | 20 kWh | 25 kWh | 30 kWh |
| Rated Voltage | 204.8V | 307.2V | 409.6V | 512.0V | 614.4V |
| Max Con. Charging Power | 5kW | 8kW | 12kW | 16kW | 20kW |
| Max Con. Discharge Current | 24.4A | 26.04A | 29.3A | 31.2A | 32.6A |
| Size (with platform and BCU) | 700*370*540mm | 700*370*700mm | 700*370*860mm | 700*370*1,020mm | 700*370*1,180mm |
| Weight (with platform and BCU) | 134.2kg | 185.4kg | 236.6kg | 287.8kg | 339kg |
| Operating Temperature | -10 ~ 50°C | ||||
| Battery Cell Type | lithium iron phosphate LiFePo4 (cobalt-free) | ||||
| Protection Rating | IP65 | ||||
| Round-trip Effeciency | ≥ 95% | ||||
| Scalability | Max of 15 modules in parallel (total of 75 kWh) | ||||
| Cycle performance | > 80% remainance after 6,000 cycles | ||||
| Applications | on grid / on grid + backup / off grid | ||||
| Communication | CAN / RS485 | ||||
| CE | IEC 62619: 2017, UN38.3 | ||||
| EMC | EN61000-6-1, EN61000-6-3 | ||||
| RoHs | yes | ||||
| Compatible Inverter Brands | CSIT - FHI-XXK3P-EU01 Hybrid Solar Inverters; Support other brands: PACE / PYLON / Growatt / Voltronic / Schneider / Luxpowertek / WOW / VISION / GoodWe / SMA / Sorotec / STUDER / SofarSolar / GINLONG / MUST / Victron |
||||

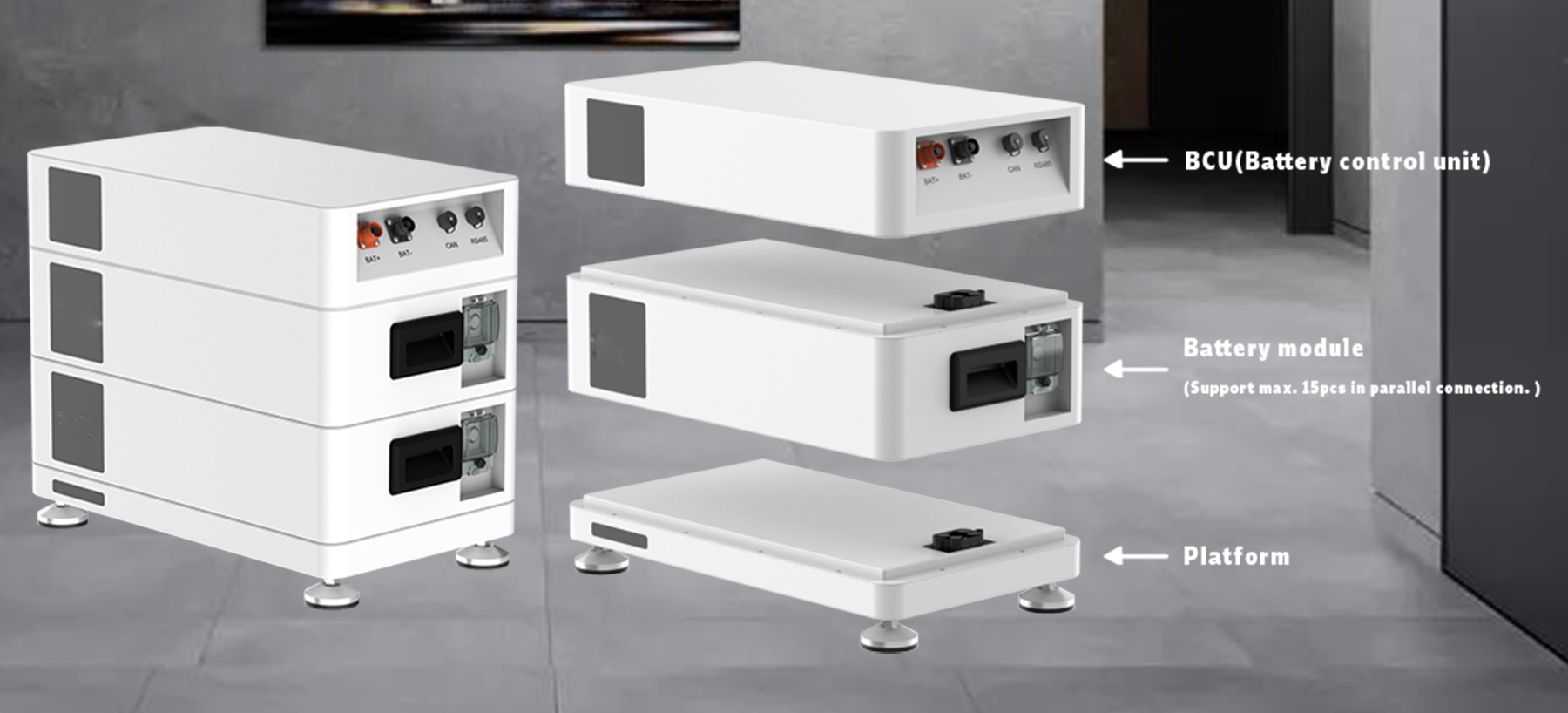

Key components
CSiT high voltage lithium iron phosphate lithium battery key components including:
BCU: BCU is short for Battery Cluster management Unit, it has a protection control function, enabling it to safeguard the battery cluster against overcharge, over-discharge, overcurrent, and overtemperature conditions, thereby ensuring safe operation. It also collects real-time status information of battery modules, such as voltage, current, and temperature, to ensure the safe and stable operation of the battery cluster.
Battery module: Each module with the capacity of 5kWh, by connecting modules in parallel, you can enlarge the capacity from 5kWh to 30kWh for one stack, each module is with battery pack and housing , no BMS.
Platform: It is equipped with contacts or slots corresponding to the positive and negative poles of the battery, which connect and secure the battery. While providing support for the battery, it also enhances the battery's safety.
Application
The high voltage stackable lifepo4 battery pack can be mainly used for residential ESS(energy storage system) , banking equipment, offices, etc. It will provide eco-friendly power electricity when the grid is off and help to save electricity costs.

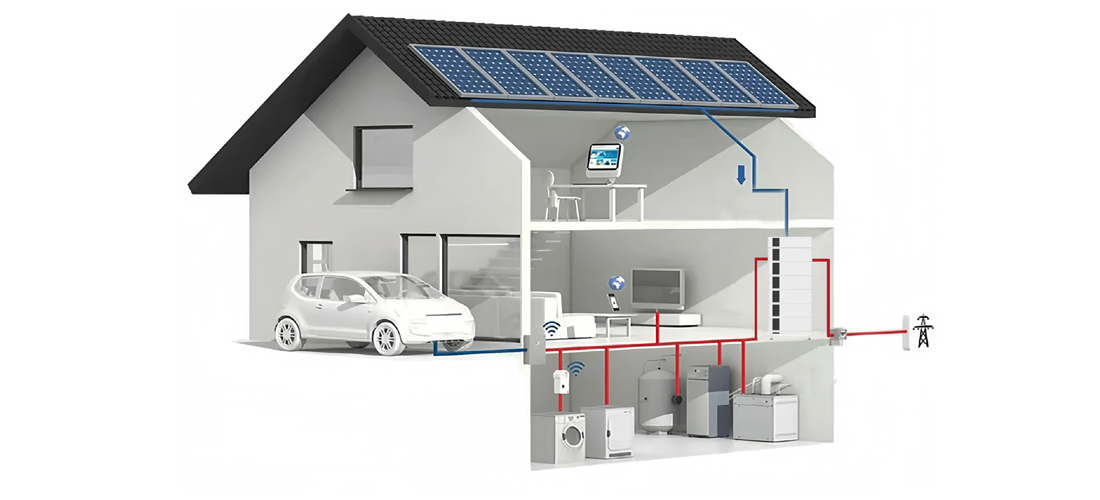

What’s included in a household solar system?
What’s included in a household solar system?
Energy storage battery pack
Inverter
Solar panel
Electric meter
Load: household electric appliances
Grid
