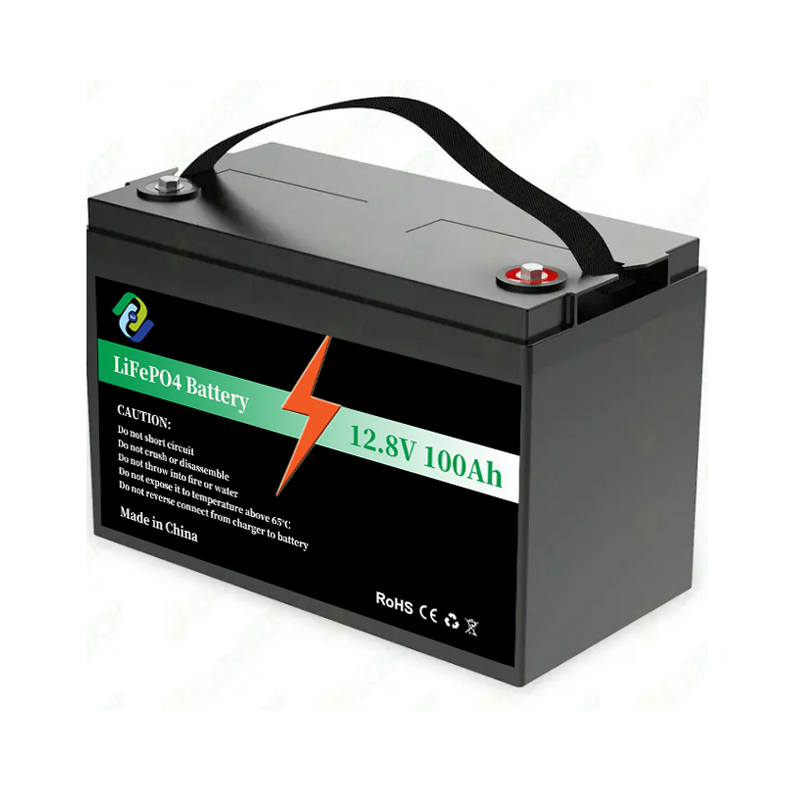

12v 100ah battery.jpg

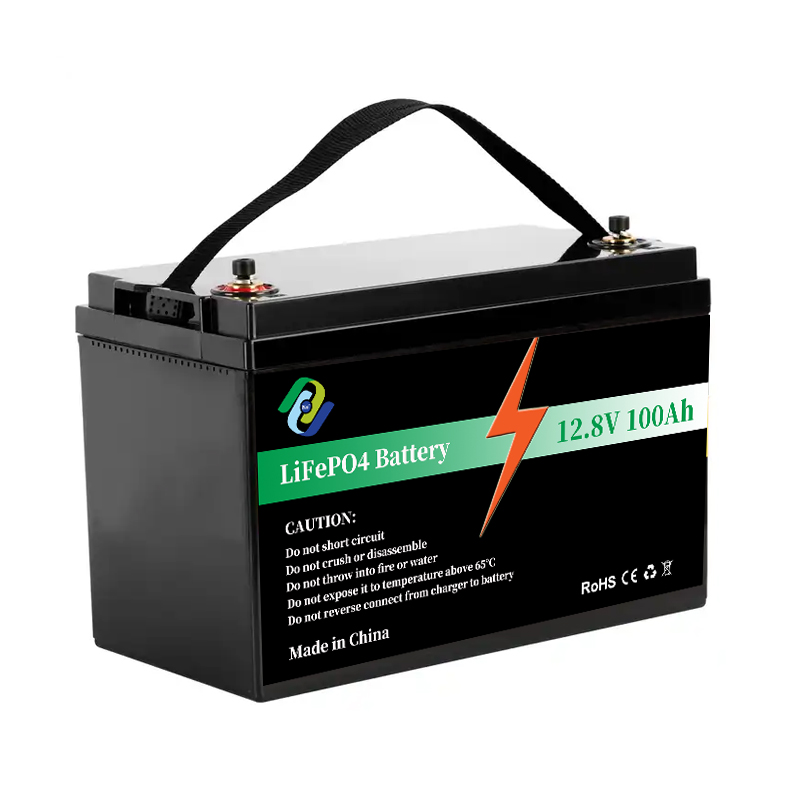

12v 100ah battery pack.jpg
lithium ion battery for RV campers.jpg

Customized 12v 100ah lithium ion battery for RV campers

Nominal Voltage: 12.8V

Nominal Capacity:100Ah

Rated energy:1280Wh

Max continuous discharge current: 100A

Housing: ABS

Size: 328*172*235mm

Weight: about 13kgs

Cycle Life: ＞4,000 Times

CSiT 12v 100ah lithium battery energy is 1280Wh, you can connect max 4pcs in parallel to enlarge the capacity to 400Ah, it’s a light weight and compact design, which could help to save much space if using it to replace lead acid battery, 4000 times cycle life provides great power to back up your device and the working performance is very stable.

    Contact us Whatsapp Email
    product details
    12v 100ah battery

    Main feature of 12v 100ah lithium ion battery

    Nominal voltage is 12.8V, nominal capacity is 100Ah.
    3-5 years warranty. We offer 3-5 years warranty for the whole design, if there’s any quality problem during warranty time, we will send replacement directly, no need to send the defective pieces back.
    4000 times long cycle life. Provide you enough back up power for your device.
    Grade A lifepo4 battery cells, reliable and durable. The cell brand we use is normally CATL, EVE, GOTION, BYD, etc.
    Reliable BMS system. The BMS provides comprehensive protection to the battery, main function including over charging/discharging protection, battery cell balancing, thermal management, over current protection and short circuit protection.
    lifepo4 battery VS lead acid 1

    What’s the advantage of 12V lithium ion battery compared with lead acid?

    The weight of the LiFePO4 battery is one third that of the lead-acid battery.
    Lithium iron phosphate is two thirds smaller in size compared to lead-acid.
    The cycle life of a LiFePO4 battery is approximately 7-10 times longer than that of a lead-acid battery.
    LiFePO4 batteries have no memory effect and are completely maintenance-free.
    Lithium batteries are environmentally friendly.
    In the long run, the cost of a LiFePO4 battery is lower than that of a lead-acid battery.
    advantage

    Technical Data sheet for 12V series

    Model  CL12012-01 CL12020-01 CL12050-01 CL12100-01 CL12200-01
    Rated Power 128Wh 256Wh 640Wh 1280Wh 2560Wh
    Rated Capacity 12Ah 20Ah 50Ah 100Ah 200Ah
    Terminal Type T2 M5 M6 M8
    Recommended Charge Current ≤6A ≤10A ≤25A ≤50A ≤100A
    Recommended Discharge Current ≤12A ≤20A ≤50A ≤100A ≤100A
    Dimension 150*65*94mm 180*76*165mm 229*138*210mm 328*172*235mm 522*239*219mm
    Weight Appx. 1.3kgs Appx. 3.5kgs Appx. 7kgs Appx. 13kgs Appx. 27.6kgs
    Rated Voltage 12.8V
    Recommended Charge Voltage 14.6V
    Operating Temperature 0 ~ 45°C for charging, -20 ~ 60°C for discharging,-10 ~ 45°C for storage
    Battery Cell Type Lithium iron phosphate  (LiFePo4)
    Charge Method CC/CV
    Protection IP65 waterproof housing, built in BMS
    Case Materal ABS
    Cycle performance 4,000- 6,000 cycles at  80% DOD
    Series Connection Up to 4pcs
    Parallel Connection Up to 4pcs
    Applications Solar street light, RVs, golf carts, yachts, boats, solar energy storage system for residential, robot, etc.
