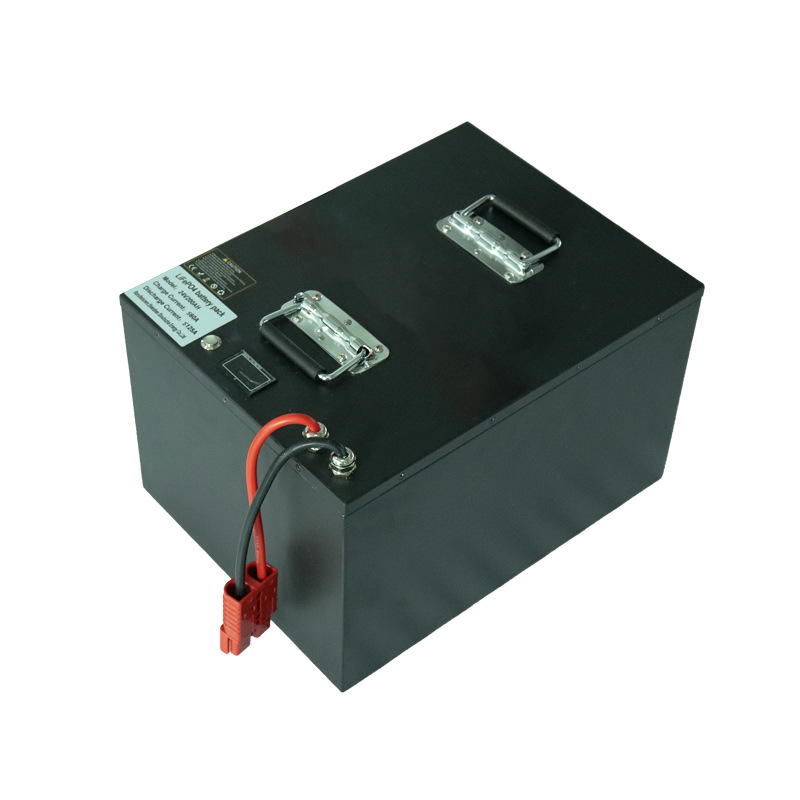

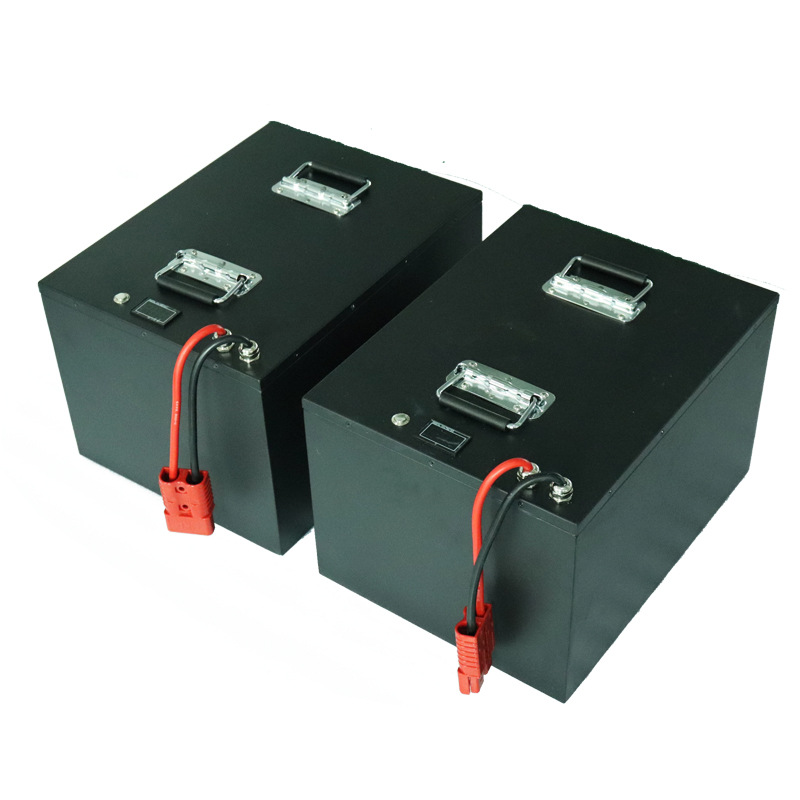

24v Sodium Forklift Battery with 6C High Discharge Rate
Advantage of CSiT 24v sodium forklift battery:
Fast charge/discharge. The max charge current can be 2C ,and the max continuous discharge current is 6C.
Super safe. It won’t catch on fire or explode even puncture it.
Wide working temperature range. CSiT sodium ion battery can be discharged at -40℃ low temperature and even 80℃ high temperature. The electrolyte in sodium-ion batteries is resistant to freezing in low-temperature environments and maintains stable conductivity at high temperatures, avoiding dangerous situations such as overheating.
Real time monitor. With CAN communication protocol, you can connect it to computer to check the status of battery, bluetooth can be added to connect with your mobile to check the capacity, current, temperature and cycle life if you want.
Could discharge to 0V.Sodium ion battery could be discharged at 0V and active successfully without any capacity loss, you don’t need to worry about safety problem during shipment if you discharge it to 0V.
3000+ cycle life. The cell inside is prismatic layered oxide , with the cycle life of 3500 times at 0.5C 70% DOD, provides much longer service life than lead acid and it’s maintenance-free.
Technical Datasheet
| Battery Model | SD24070 |
| Nominal Voltage | 24V |
| Nominal Capacity | 70Ah |
| Rated Energy | 1680Wh |
| Dimension | 420*320*260mm |
| Configuration | 8S1P |
| Working Voltage Range | 14.4~32.0V |
| Standard Charge Current | 14A |
| Max. Charge Current | 70A |
| Standard Discharge Current | 14A |
| Max. Disharge Current | 210A(customized) |
| Housing Material | Iron |
| Weight | appx.19.8kgs |
| Communication protocol | CAN |
| Charge Voltage | 32.0V |
| Dischage Cut-off Voltage | 14.4V |
| Charge Temperature | -10~45°C |
| Discharge Temperature | -40~60°C |
| Cyle Life | ≥3000 times |
Application
CSiT 24v sodium ion battery can be used for:
AGV robot.
Golf cart.
Forklift.
Low speed car.
