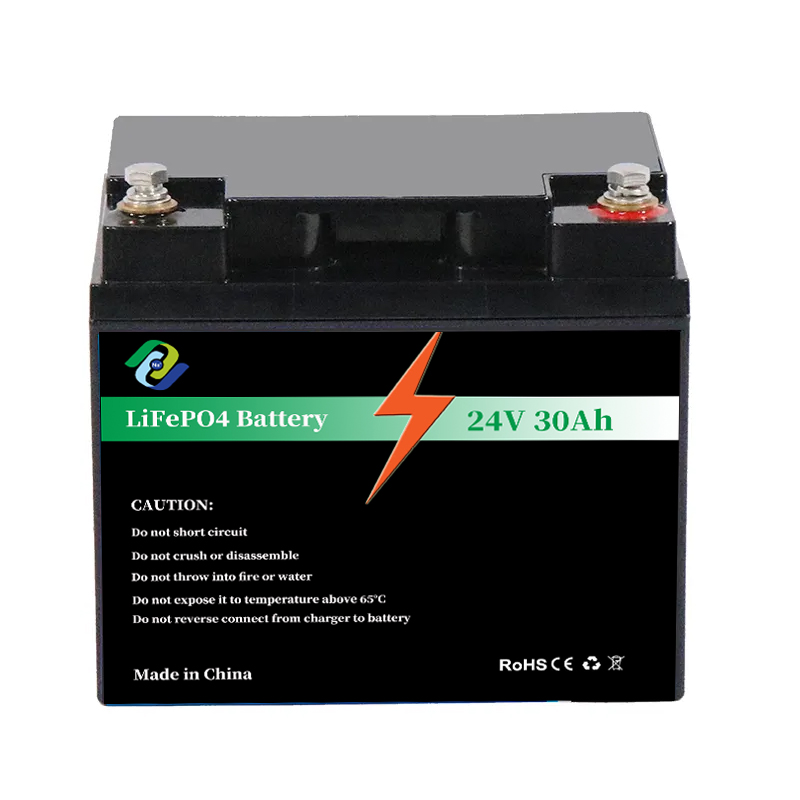

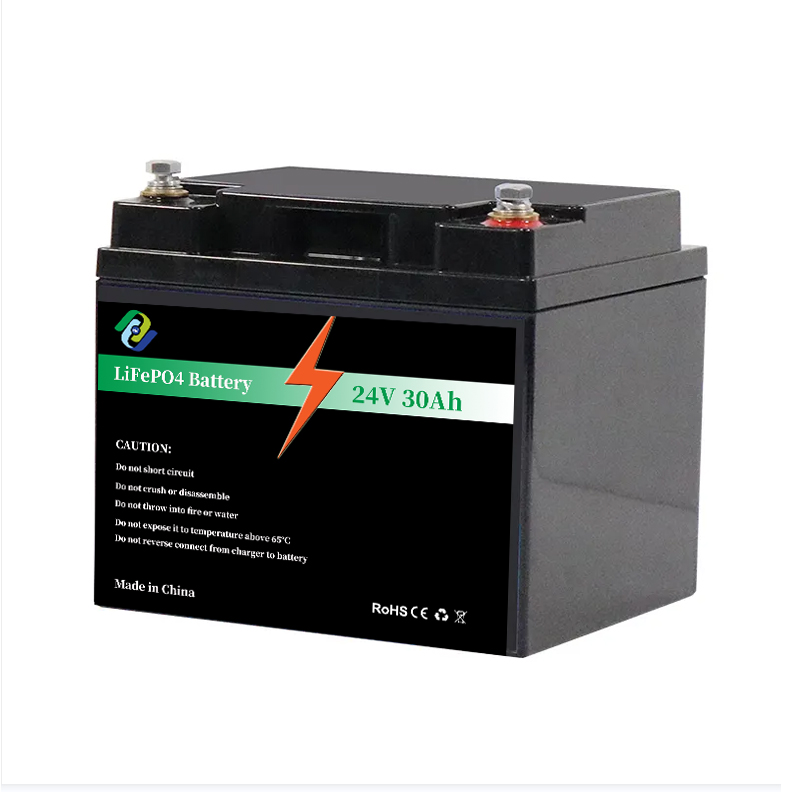

Customized 24v 30ah lithium lifepo4 battery for lead acid replacement
Main feature of CSiT 24v 30ah lifepo4 battery
● Light weight. The weight of a LiFePO4 battery is only approximately one-third that of a lead-acid battery with the same capacity and voltage, making it a lightweight option.
● Extended cycle life: our lithium iron phosphate battery boasts a cycle life of approximately 4000 cycles, significantly surpassing that of lead-acid batteries.
● Reliable BMS system. A dependable BMS system offers extensive safeguards for the battery, encompassing key functions such as overcharge/discharge protection, cell balancing, thermal management, overcurrent protection, and short-circuit prevention.
● Environmentally friendly: Lithium iron phosphate batteries are free from heavy metals like lead and other harmful substances, ensuring no pollution during their production, usage, and recycling processes.
● Customized. The battery voltage, capacity, dimension, discharge current and housing can be customized, blue tooth and LCD display can be added if you need.
Technical Datasheet
| Model | CL24030-01 |
| Rated Power | 768Wh |
| Rated Voltage | 25.6V |
| Rated Capacity | 30Ah |
| Terminal Type | M6 |
| Recommended Charge Current | ≤15A |
| Recommended Discharge Current | ≤15A |
| Dimension | 197*165*169mm |
| Weight | Appx. 7.5kgs |
| Recommended Charge Voltage | 28.8V |
| Operating Temperature | 0 ~ 45°C for charging, -20 ~ 60°C for discharging,-10 ~ 45°C for storage |
| Battery Cell Type | Lithium iron phosphate (LiFePo4) |
| Charge Method | CC/CV |
| Protection | IP65 waterproof housing, built in BMS |
| Case Materal | ABS |
| Cycle performance | 4,000- 6,000 cycles at 80% DOD |
| Series Connection | Up to 4pcs |
| Parallel Connection | Up to 4pcs |
| Applications | Solar street light, RVs, golf carts, yachts, boats, solar energy storage system for residential, robot, etc. |
Product details
24 volt 30ah lithium battery mainly includes below components:
Smart BMS: integrated BMS to protect the battery pack from over current, over charging/discharging, short circuit, and over temperature, with active balancing.
ABS housing: at least 1.5mm thickness, IP65 waterproof
Lithium ion phosphate battery pack : 8 cells in series and 5 cells in parallele connection.
Terminal: charge and discharge share the same connector, customized.
Application
The 24V Lead-acid Replacement Lithium Battery can be mainly used on RV campers,golf car, energy storage system, etc.
