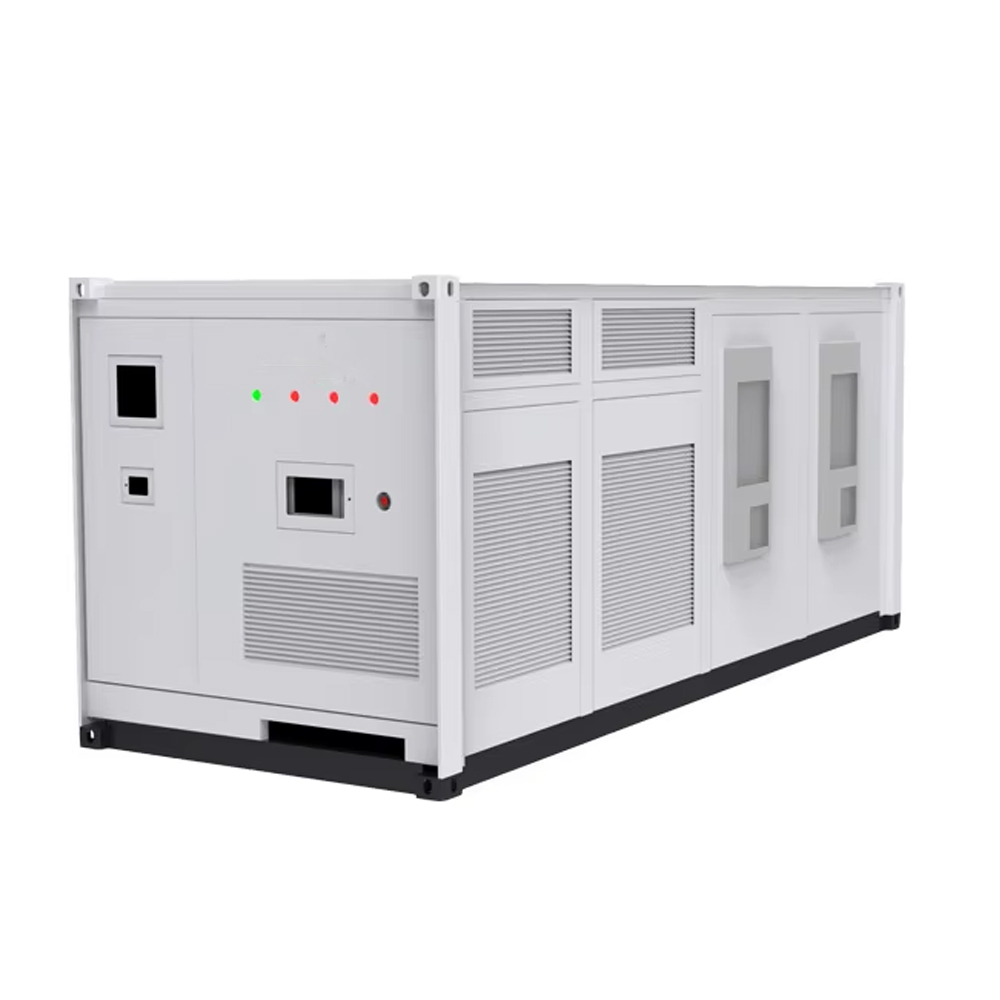

Air cooling hybrid BESS 20ft energy storage container
Advantages of CSiT BESS
Impressive Energy Storage Capabilities: This system features an extensive 1MWh energy storage capacity, catering to a diverse array of applications spanning from industrial to commercial sectors.
Powerful Output Performance: With a maximum power output of 500kW, it's perfectly suited for driving high-power appliances and equipment, addressing large-scale energy storage requirements effortlessly.
Robust and Dependable Design:Rated IP54 and equipped with an air cooling mechanism, this containerized energy storage unit is engineered to endure challenging environments, ensuring uninterrupted service for up to 3 years, complemented by a comprehensive warranty package.
Cutting-edge Battery Solutions: Incorporating high-efficiency LiFePO4 batteries, the system guarantees dependable and enduring energy storage. An advanced active balancing BMS further ensures peak battery condition and longevity.
Adaptable Grid Integration: Supporting hybrid grid connectivity, this system enables users to smoothly transition between grid-tied and off-grid modes, making it a prime choice for remote or isolated sites.
Technical Datasheet
| Rated Voltage | Vdc | 153.6 |
| Working voltage range | Vdc | 134.4~175.2 |
| Rated energy | kWh | 43.008 |
| Charge/discharge rate | Cp | ≤0.5 |
| Battery cluster information | ||
| Battery pack QTY in series | \ | 5S |
| Rated Voltage | Vdc | 768 |
| Working voltage range | Vdc | 600~876 |
| Rated energy | kWh | 215.04 |
| Charge/discharge rate | Cp | ≤0.5 |
| Battery system information | ||
| Battery cluster quantity | \ | 8 |
| Rated Voltage | Vdc | 768 |
| Rated energy | MWh | 1 |
| Charge/discharge rate | Cp | ≤0.5 |
| Cable output way | \ | DC convergence |
| General parameter | ||
| Dimension（W*D*H） | mm | 6058*2438*2591(W*D*H) |
| Working temperature range | ℃ | -30~55 |
| Relative humidity | %RH | 0~95%RH |
| Working altitude | m | ≤3000 |
| Cooling method | \ | liquid cooling |
| Protection Grade | \ | IP54 |
| Communication interface | \ | CAN , RS485 |
| PCS Rated Power | kW | 500 |
Product Overview
CSiT liquid cooled energy storage cabinet adopts standardized design, integrating the DC side of energy storage system such as lithium iron phosphate battery system, BMS, fire protection system, liquid cooling thermal management system and auxiliary power distribution into a 20-foot container. Advanced liquid cooling technology further improves product performance, energy density and cycle life, providing users with high-safety, high-reliability and long-life energy storage solutions, which can be flexibly configured to meet the needs of different application scenarios.
Application
The 1MWh energy storage system can be used on Peak and frequency regulation, smoothing new energy generation;Industrial and commercial demand management, peak shaving;Power quality improving, and backpower supply at user side; Mobile energy storage, electric rescue;Building microgrid system, etc.
