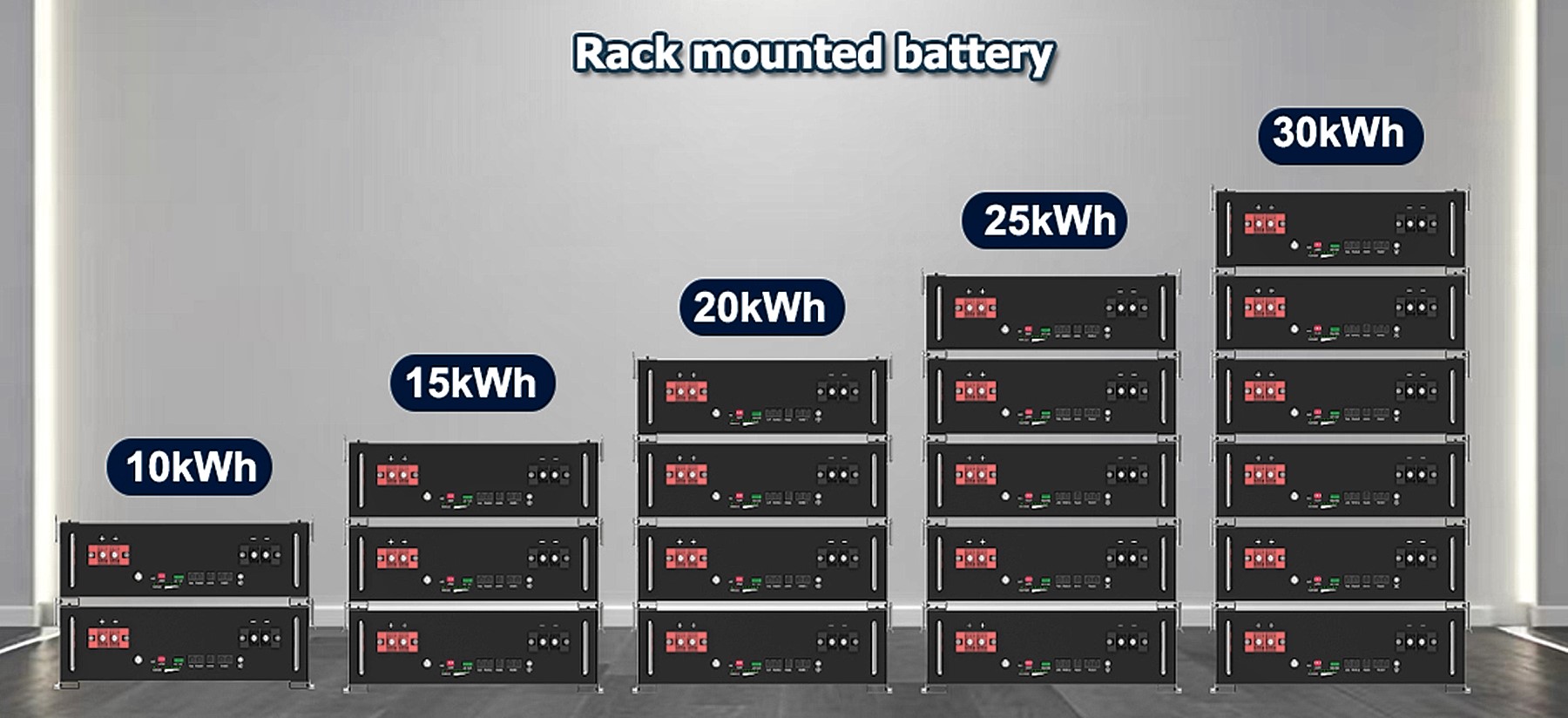

Rack mounted 5kWh to 30kWh solar energy li ion battery storage
Main Feature of CSiT rack mounted solar energy battery storage
Long cycle life: use grade A cells such as CATL, EVE, GOTION, cycle life is 4000-6000 times.
Compatible with most famous brands of inverter such as PACE / PYLON / Growatt / Voltronic / Schneider / Luxpowertek / WOW / VISION , etc.
5kWh of each battery module, max capacity can be 75kWh.
Economical solution , save your cost.
6~10 years warranty time.
Technical Datasheet
| Model | FHBL-05KLV-02 | FHBL-10KLV-02 | FHBL-15KLV-02 | FHBL-20KLV-02 | FHBL-25KLV-02 | FHBL-30KLV-02 |
| Module Quantity | 1 | 2 | 3 | 4 | 5 | 6 |
| Capacity | 5kWh | 10kWh | 15kWh | 20kWh | 25kWh | 30kWh |
| Rated Voltage | 51.2V | |||||
| Max.Con.Charging Power | 5kW | 10kW | 10kW | 10kW | 10kW | 10kW |
| Max.Con.Discharge Current | 97A | 195.3A | ||||
| Size | 464*439*155（mm） | 464*439*310（mm） | 464*439*465（mm） | 464*439*620（mm） | 464*439*775（mm） | 464*439*930（mm） |
| Weight | 46kg | 92kg | 138kg | 184kg | 230kg | 276kg |
| Operating Temperature | -10℃~50℃ | |||||
| Battery Cell Type | lithium-ion phosphate LiFePO4 (cobalt-free) | |||||
| Protection Rating | IP21 | |||||
| Round-trip Effeciency | ≥95% | |||||
| Scalability | Max of 15 modules in parallel (total of 75 kWh) | |||||
| Cycle performance | ＞ 80% remainance after 6,000 cycles | |||||
| Applications | on grid / on gird + backup / off grid | |||||
| Coummunication | CAN / RS485 | |||||
| CE | IEC 62619:2017, UN38.3 | |||||
| EMC | EN61000-6-1, EN61000-6-3 | |||||
| RoHs | yes | |||||
| Compatible Inverter Brands | CSiT-FHI-XXXK1P-EU01 Hybrid Solar Inverters; Support other brands : PACE / PYLON / Growalt / Voltronic / Schneider / Luxpowertek / WOW / VISION / GoodWe / SMA / Sorotec / STUDER / SofarSolar / GINLONG / MUST / Victron / SRNE | |||||
Product details

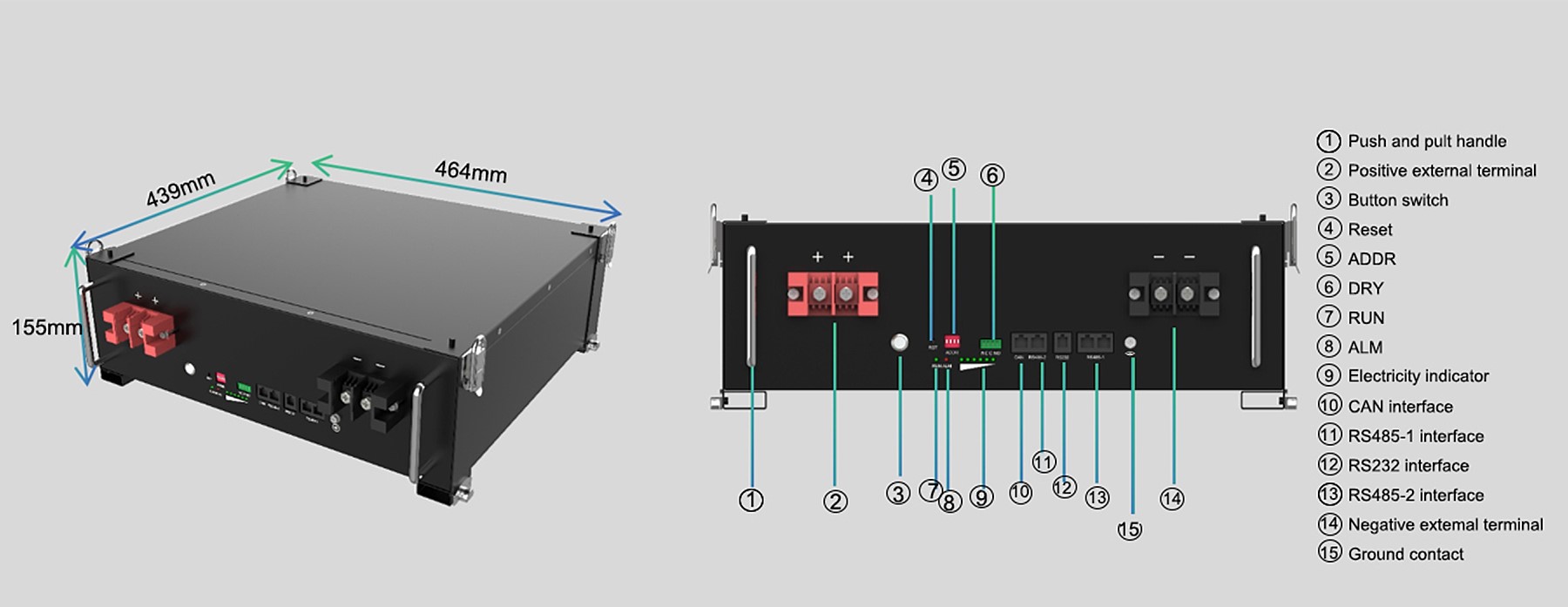

CSiT rack mounted 51.2V energy storage battery details of each module is as below, it is an economical solution for residential energy storage, cost is lower than wall mounted and stackable design.
Cabinet and wheels can be added according to customer’s request, OEM/ODM orders are welcome.
Application

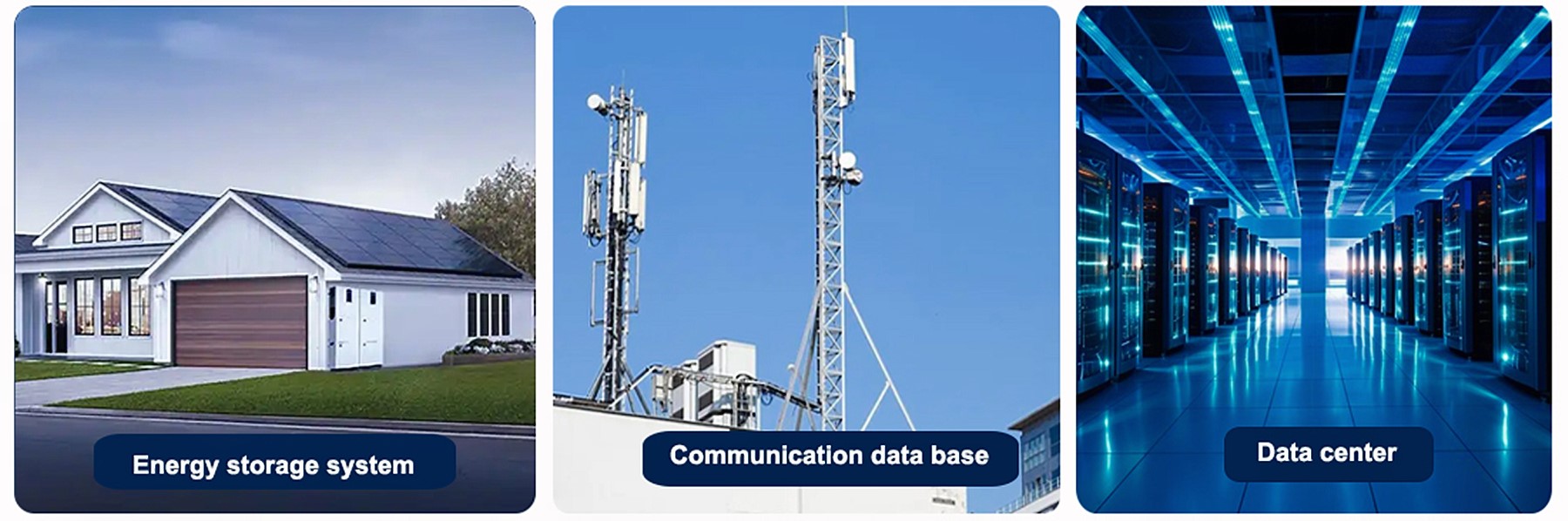

The lifepo4 rack mount energy storage battery can be used on residential ESS(energy storage system) , communication based station and UPS system/data center backup.
What’s included in a residential solar system?
LiFePO4 Battery pack
Inverter
PV panel
Electric meter
Load: home electric appliances
Grid
