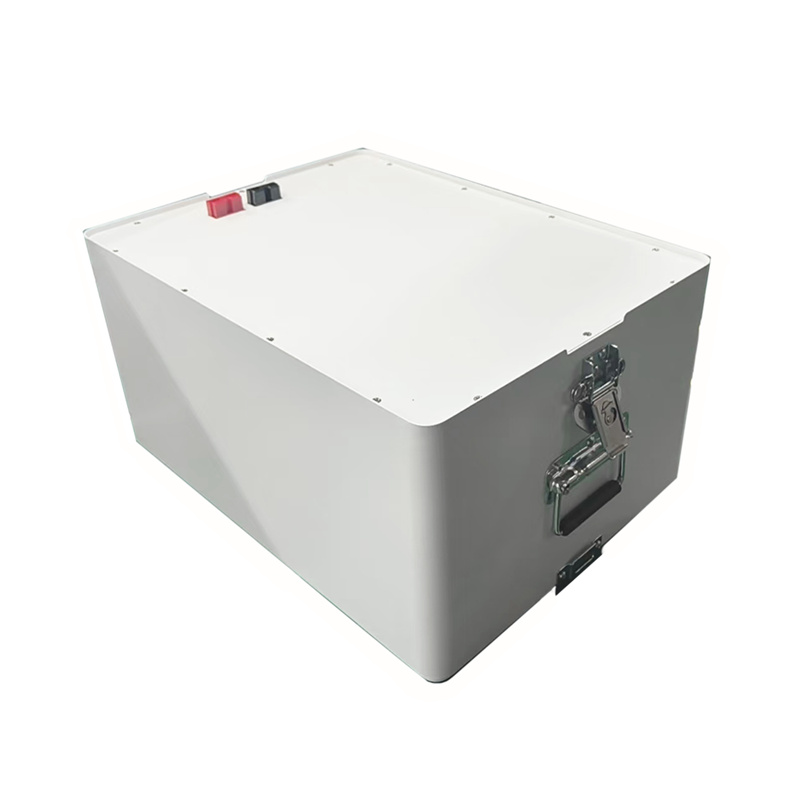

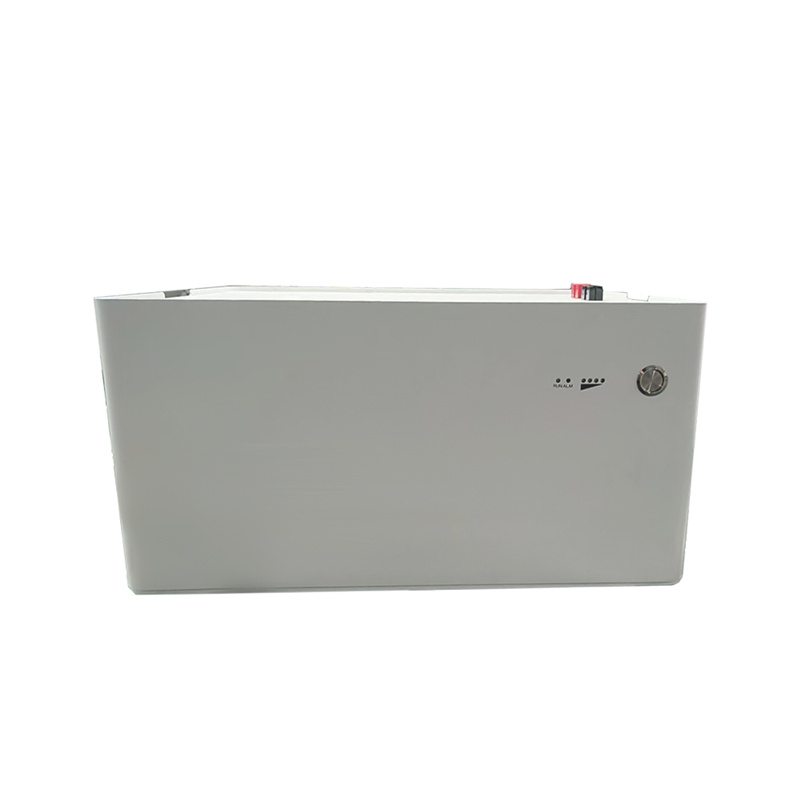

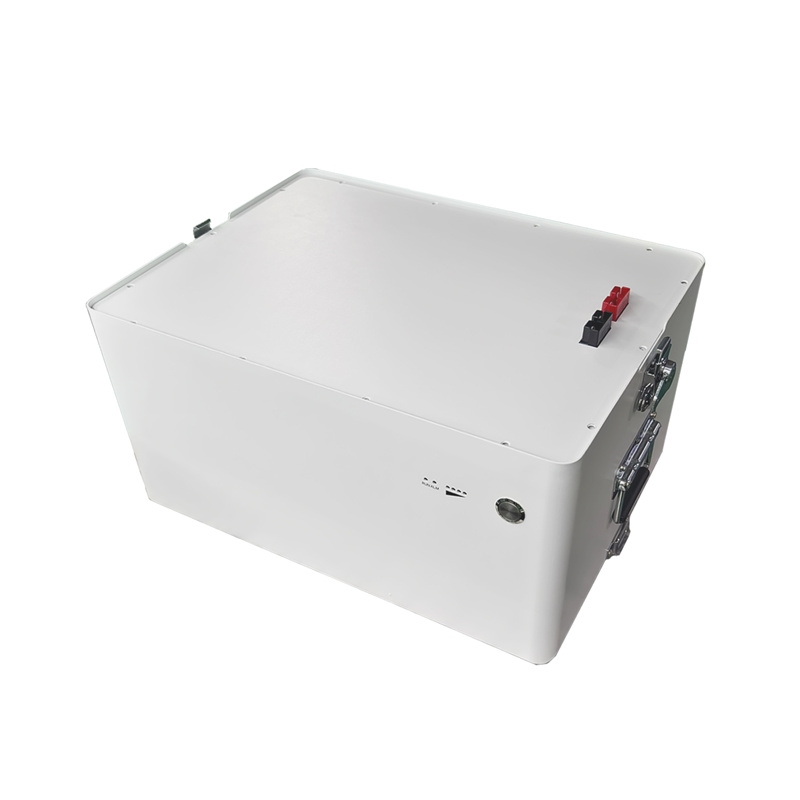

Household 5kWh Lock - buckled stacked lithium- ion battery
Key Feature of CSiT 51.2V lifepo4 battery for energy storage systems.
High-quality battery cells with 2000+ times cycle life @ 80% DOD.
Advanced Protection Board: It has an advanced protection board that monitors and protects against overcharging, over-discharging, short circuits, and over current.,

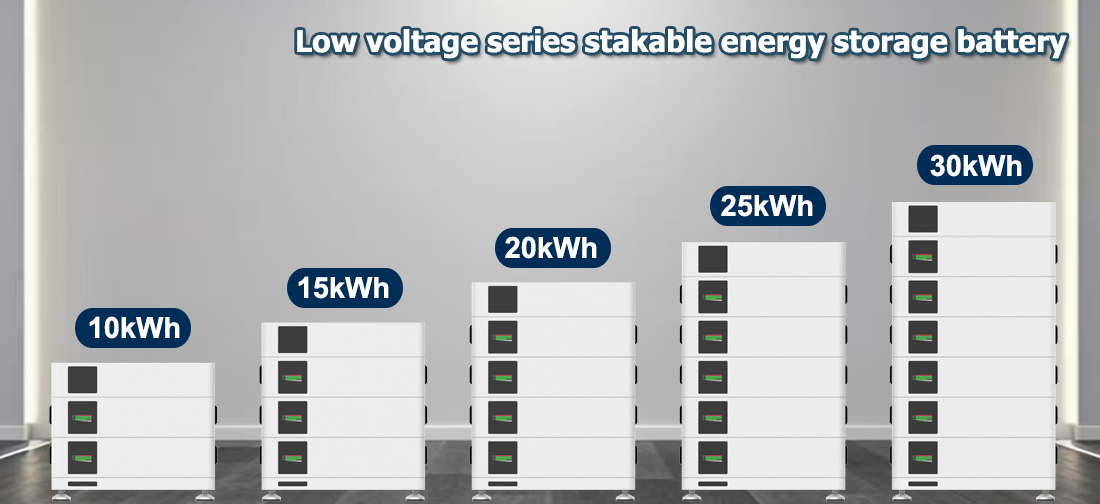

Modular and Stackable Design, Max of 10 modules in parallel.
Space-saving and Easy Installation
5 years warranty brings you peace in mind.
Latching design, with a more stable structure.
Technical Datasheet
Model |
FHBL-05KLV-03 |
Capacity |
5 kWh |
Rated Voltage |
51.2 V |
Max Con. Charging Power |
5kW |
Max Con. Discharge Current |
100A |
Size |
513.6*351.4*249mm |
Weight |
45kg |
Operating Temperature |
0 ~ 55°C |
Battery Cell Type |
lithium iron phosphate LiFePo4 (cobalt-free) |
Protection Rating |
IP40 |
Round-trip Effeciency |
≥ 95% |
Scalability |
Max of 10 modules in parallel (total of 50 kWh) |
Cycle performance |
> 80% remainance after 2000 cycles |
RoHs |
yes |
Compatible Inverter Brands |
CSIT - FHI-XXK1P-EU01 Hybrid Solar Inverters; |
How to connect with the inverter?
This battery pack is connected to a hybrid PV inverter and can use PV power, grid power and battery power to connect with loading requirement electrical part.
Please follow below steps to implement battery connection:
Application
The 48V and 51.2V lithium-ion batteries are primarily applied in residential ESS (Energy Storage Systems) to serve as backup power sources for home appliances like fridges, TVs, air conditioners, and fans. The employment of a home energy storage system enables the improvement of energy efficiency, the reduction of power outage risks, and the optimization of electricity costs.

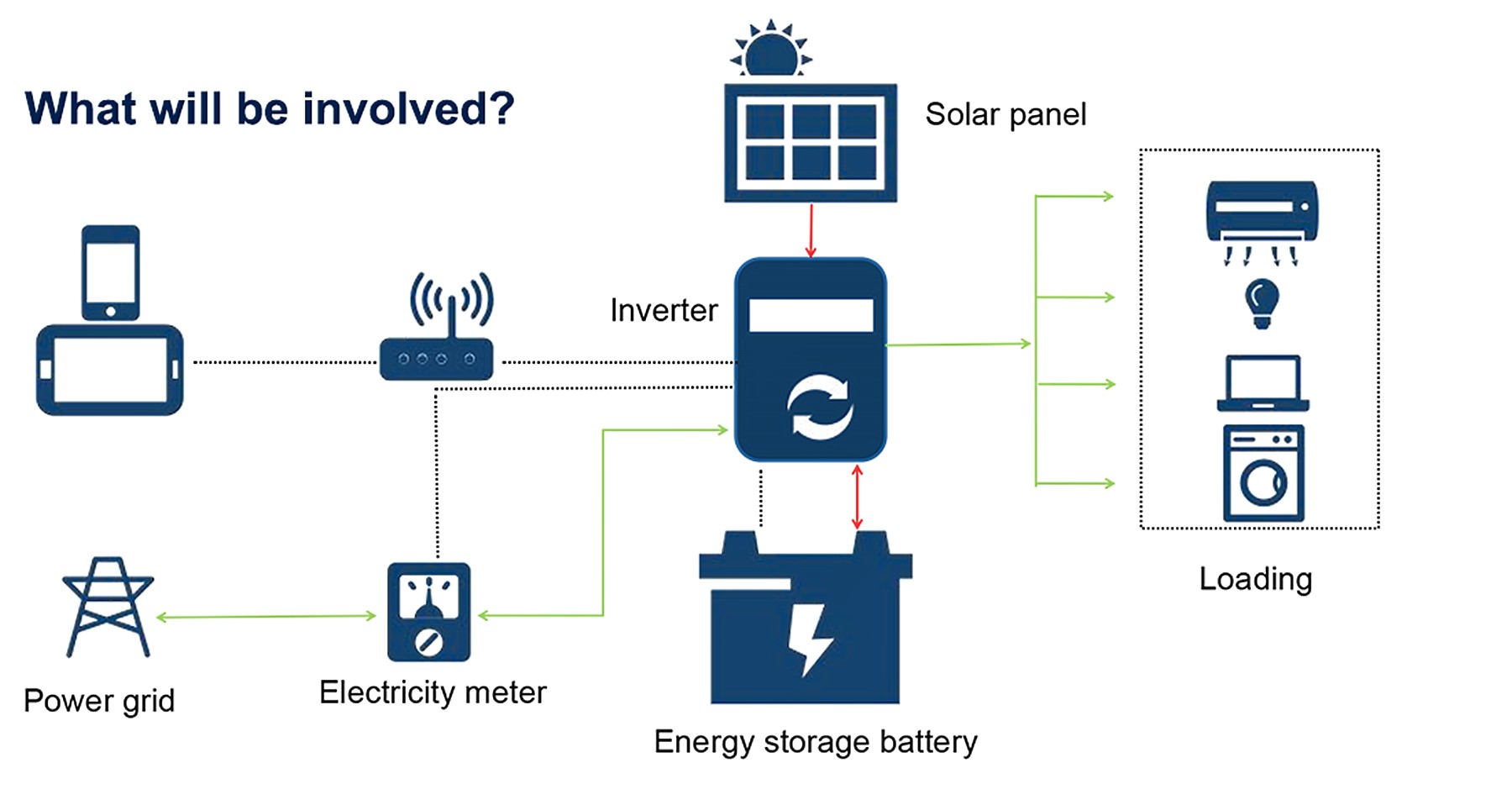

What’s included in a residential solar system?
Energy storage battery pack
Inverter
Solar panel
Electric meter
Load: household electric appliances
Grid
