Customized 1000w 48v 15ah ebike battery
Advantages of CSiT 48v electric bicycle battery
Cycle life is over 800 times.
Real capacity. The battery rated capacity is 15Ah, and the min capacity is 14.6Ah, we have reputation in the industry and never exaggerate the capacity.
Grade A first class battery cells. We use only grade A battery cells to make sure a good working performance.
Customized. CSIT engineer team is skillful and most of them have over 20 years experience in this filed, we can customize the battery according to your request, such as capacity, voltage, dimension, cable length, connectors, discharge current, LOGO, etc.
Safe and reliable. All of our lithium battery packs are with BMS to protect the battery from over current, over charging, over discharging, over voltage and short circuit, what’s more, if you have special request like temperature protection, reverse connection protection, we can also make it.
Easy to install. Just plug and play.
Technical Data sheet
| Battery Model | ICE48015 |
| Nominal Voltage | 48V |
| Nominal Capacity | 15Ah |
| Rated Energy | 720Wh |
| Dimension | 265*115*70mm |
| Configuration | 13S5P |
| Working Voltage Range | 39~54.6V |
| Standard Charge Current | 3A |
| Max. Charge Current | 7.5A |
| Standard Discharge Current | 3A |
| Max. Disharge Current | 30A |
| Connector | Customized |
| Charge Voltage | 54.6V |
| Dischage Cut-off Voltage | 39V |
| Charge Temperature | 0~45°C |
| Discharge Temperature | -20~65°C |
| Cyle Life | ≥800 times |
Product details

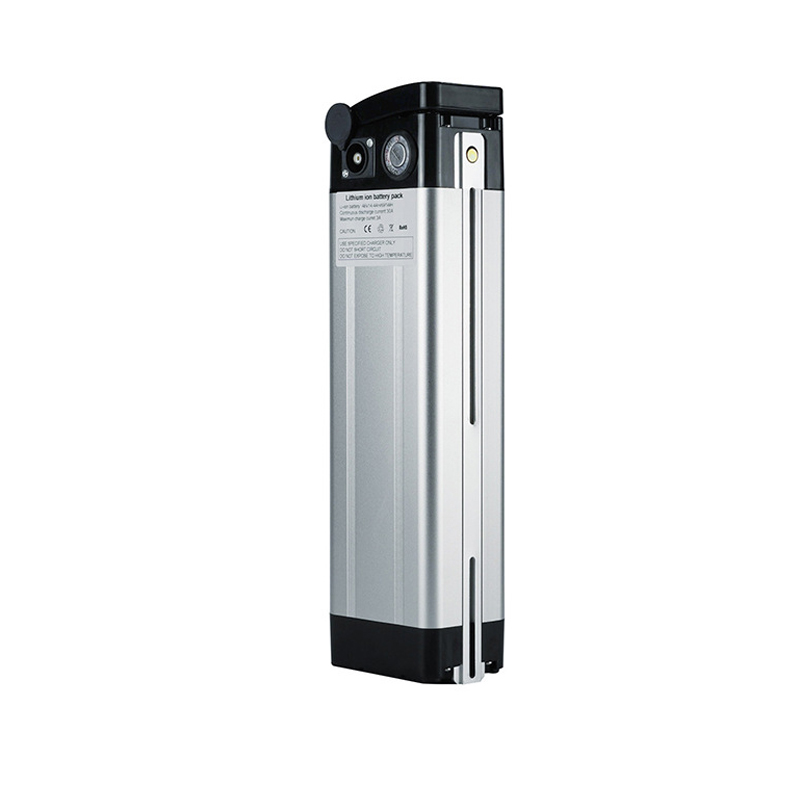

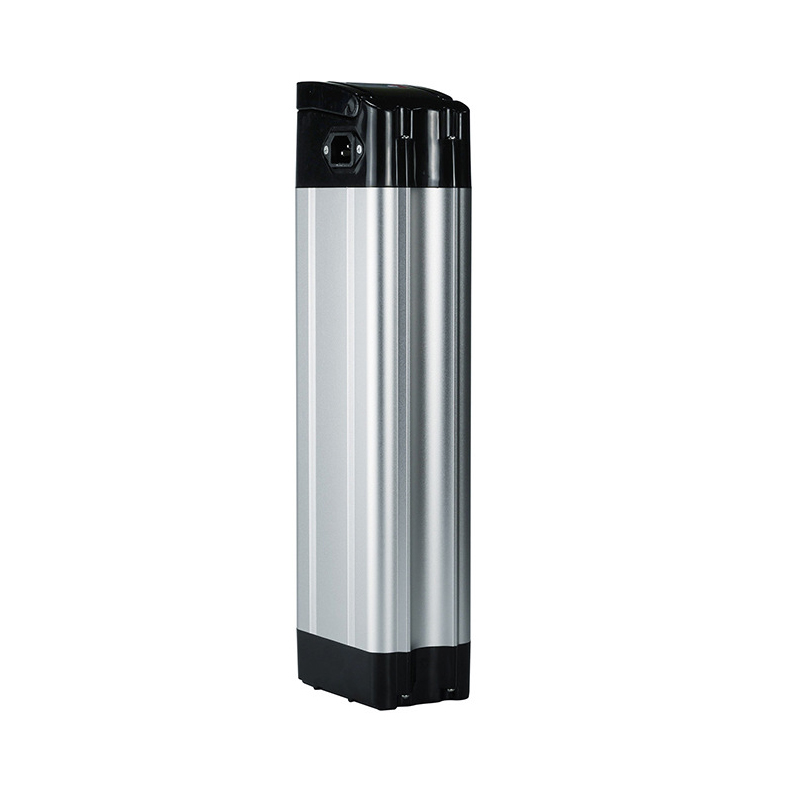

Product details of 48 volt electric bicycle battery
48 volt battery for electric bike mainly includes below components:
Aluminum housing
Grade A lithium ion battery pack. 13 cells in series connection and 5 cells in parallel connection, capacity and voltage are customized.
BMS: to protect battery from over current, over charging/discharging, short circuit and over temperature.
Charge/discharge connector: durable and customized.
Application
CSiT electric bike battery 48v 1000w can mainly be used for electric bikes, electric tricycles, e-motorcycles, etc.
