215kwh liquid cooled commercial and industrial energy storage battery systems
Advantages of CSiT 215kWh liquid cooled battery storage system.
● Use new generation of REPT LiFePO4 battery cells.
● Maximum conversion efficiency is 97%.
● Battery cycle life could reach 10,000 times.
● Rated energy of the lithium battery inside is about 215kWh.
● All-in-one design and highly integrated.
● Modular design with different optional parts. Parallel installation side by side or back to back.
● Super safe. PACK level precision firefighting, real-time firefighting detection, reserved water fire interface, multi-level security strategy.
Technical Datasheet
| Item | Unit | Spec |
| Battery pack information | ||
| Cell type | \ | LFP 280Ah |
| Configuration | \ | 1P48S |
| Rated Voltage | Vdc | 51.2 |
| Working voltage range | Vdc | 44.8~58.4 |
| Rated energy | kWh | 14.336 |
| Charge/discharge rate | Cp | ≤0.5 |
| Battery cluster information | ||
| Battery pack QTY in series | \ | 5S |
| Rated Voltage | Vdc | 768 |
| Working voltage range | Vdc | 672~876 |
| Rated energy | kWh | 215.04 |
| Charge/discharge rate | Cp | ≤0.5 |
| AC system parameters | ||
| Rated power/maximum power on the AC side | kW | 100/110 |
| Voltage range | Vac | Grid-connected: 400V (-20%~+15%) Off-grid: AC400V±3% |
| Frequency | Hz | 50/60 |
| AC access method | \ | Three-phase four-wire |
| Cooling method | \ | Forced air cooling |
| General parameter | ||
| Dimension（W*D*H） | mm | 1400×1300×2320 |
| Weight | t | <3 |
| Working temperature range | ℃ | -30~55 |
| Relative humidity | %RH | 0~95%RH |
| Working altitude | m | ≤3000 |
| Cooling method | \ | Air conditioning air-cooled |
| Protection Grade | \ | IP54 |
Product Overview
● The liquid cooled energy storage cabinet is planned to use lithium iron phosphate battery, and the operation mode is "self-generation and self-use, peak-valley arbitrage". The energy storage system can meet the daily 0.5C/2 charge and discharge requirements, and the grid-connected voltage level is 0.4kV.

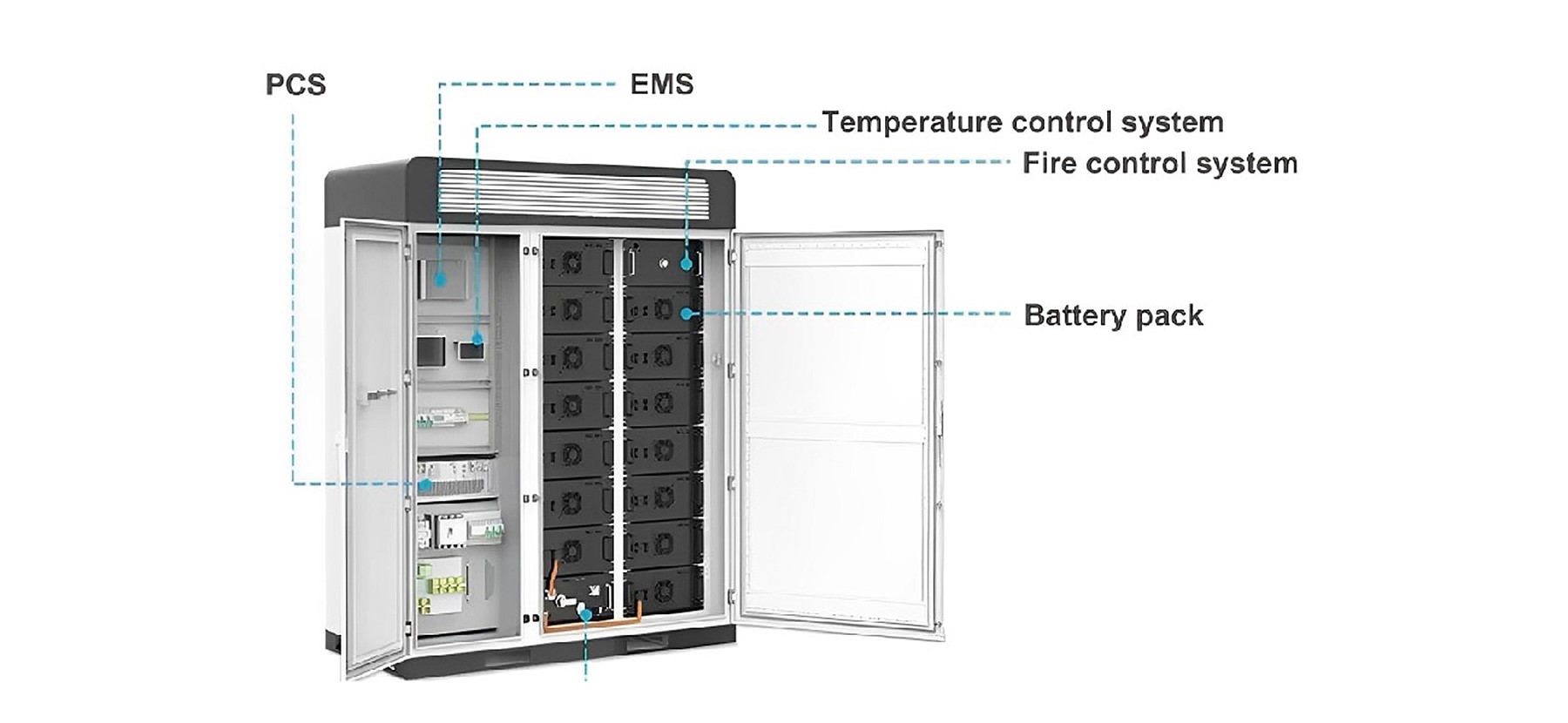

● The BESS cabinet adopts an integrated design, integrating the battery cell, BMS, PCS, fire protection system, power distribution system, thermal management system, and energy management system into a standardized outdoor cabinet to form an integrated plug-and-play one-stop integrated product.
● The energy storage cabinet adopts modular design, with modular levels of energy storage battery monomer-battery module-battery rack-battery system, with clear hierarchy, clear structure and complete functions.
Application

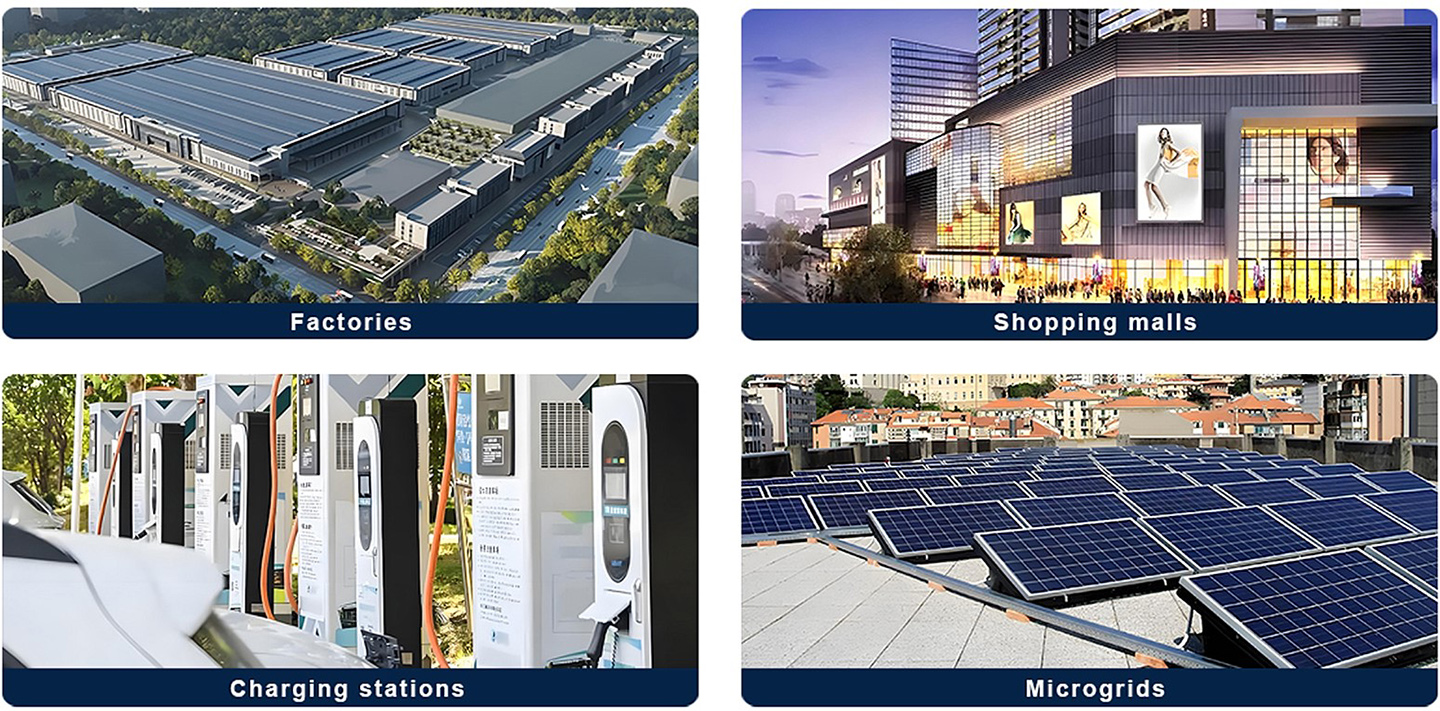

The liquid cooled battery storage system is mainly used to provide electricity for factories, shopping malls, charging stations and microgrids.
