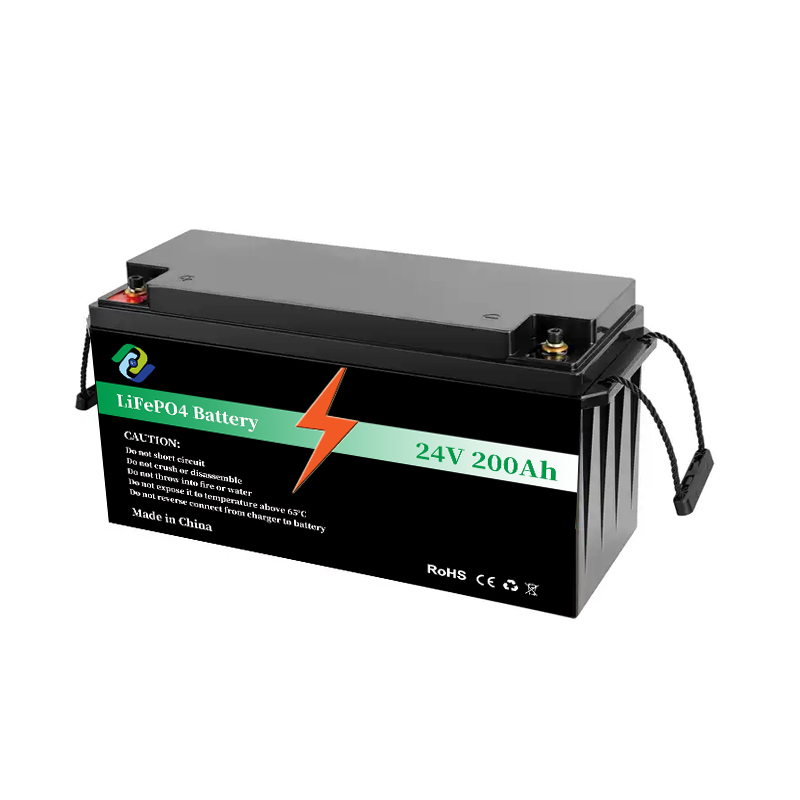

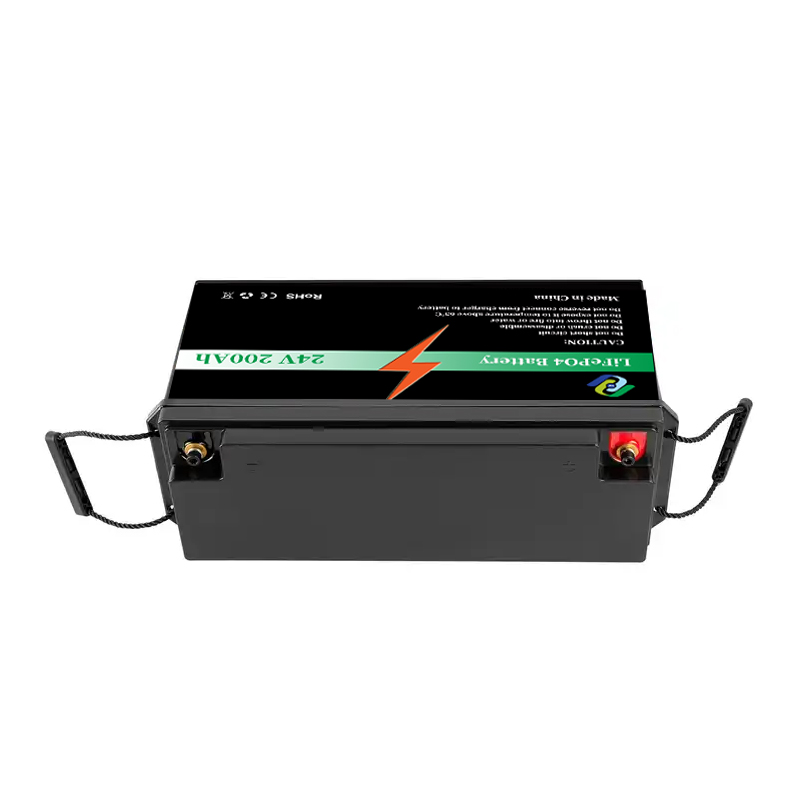

Customized 24v 200ah lifepo4 lithium battery for RV campers

Nominal Voltage: 25.6V

Nominal Capacity:200Ah

Rated energy:5120Wh

Max continuous discharge current: 100A

Housing: ABS

Size: 490*265*215mm

Weight: about 38kgs

Cycle Life: ＞6,000 Times

CSiT 24v 200ah lifepo4 battery is with grade A brand new cells inside to provide 6000 cycle life, over 10 years lifespan, you can enlarge the capacity by connecting cells in parallel, max 4pcs in connection. The monthly self discharge rate is less than 3%, integrated with smart BMS, which could provide stable working performance . OEM/ODM orders are warmly welcome.

    Contact us Whatsapp Email
    product details
    24v 200ah battery

    Advantages of 24V 200Ah lithium battery

    ● Light weight: the energy density of CSiT lifepo4 battery is much higher than drop in lead acid battery, which could provide higher energy based on the same space, thus to provide longer back up time.
    ● 6000+ cycle life. The cells we choose is from first rating brands such as CATL, EVE, BYD, to provide long cycle life and up to 15 years lifespan for energy storage system if only one charge/discharge per day. After 6000 time cycles, the capacity it could reach is about 80% of the initial.
    ● Support parallel connection to enlarge the capacity: CSiT 24V 100Ah drop in lithium ion battery can be connected in parallel, max quantity is 4pcs, thus to achieve 800Ah capacity .
    ● Light weight and compact design. The lithium iron phosphate battery weight is only about 1/5 of the traditional lead acid battery, easy to carry and save space.
    ● Easy to install. Just connect with cables and it will work.
    ● Real time monitor. Blue tooth function can be added, you can check the battery status after download specified APP. ‌‌‌‌‌‌
    advantage

    Technical Datasheet

    Model  CL24200-01
    Rated Power 5120Wh
    Rated Capacity 200Ah
    Terminal Type M8
    Recommended Charge Current ≤100A
    Recommended Discharge Current ≤100A
    Dimension 490*265*215mm
    Weight Appx. 38kgs
    Rated Voltage 25.6V
    Recommended Charge Voltage 28.8V
    Operating Temperature 0 ~ 45°C for charging, -20 ~ 60°C for discharging,-10 ~ 45°C for storage
    Battery Cell Type Lithium iron phosphate  (LiFePo4)
    Charge Method CC/CV
    Protection IP65 waterproof housing, built in BMS
    Case Materal ABS
    Cycle performance 4,000- 6,000 cycles at  80% DOD
    Series Connection Up to 4pcs
    Parallel Connection Up to 4pcs
    Applications Solar street light, RVs, golf carts, yachts, boats, solar energy storage system for residential, robot, etc.

    Application

    The 24V 200Ah lithium battery can be used to replace lead acid  for  for boats, RVs, sweepers, liftgates, UPS systems, solar storage and so on.
