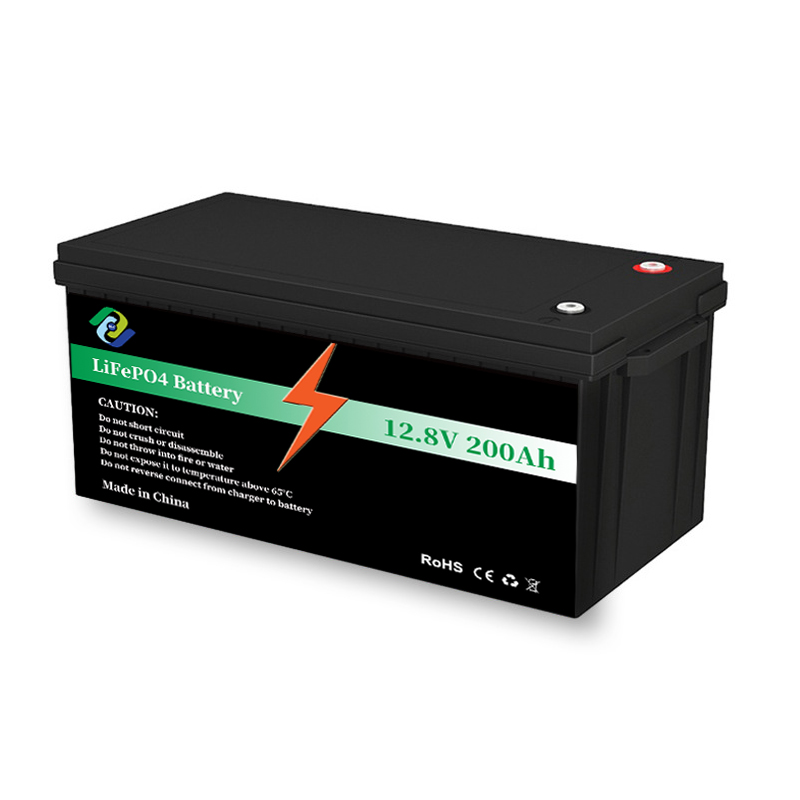

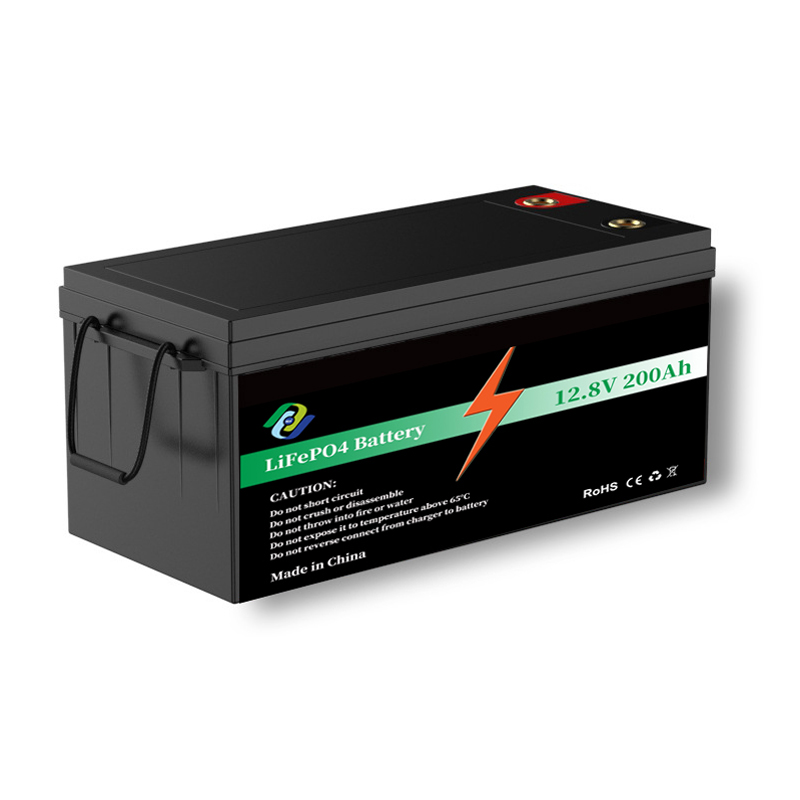

Drop in replacement 12v 200ah lifepo4 lithium battery for energy storage
Main feature of 12v 200ah lithium ion battery
Voltage and capacity expansion. This lithium ion battery pack support up to 4pcs in parallel connection and 4pcs in series connection.
Three ways to charge. It support solar panel+charge controller , lifepo4 battery specified charger and generator with charger to charge.
More than 10 years lifespan. Cycle life is about 3000 times, it has about 10 years lifespan for energy storage application if it’s one charge/discharge per day.
More safer. With BMS protection to protect battery from over charge/discharge, over current, short circuit, over temperature. Pass the tests of CE, UN38.3, IEC62133, etc.
OEM/ODM is acceptable. The battery voltage
Grade A cells. We use only grade A brand new cells from famous cell suppliers in China, to provide better and long lasting back up for your devices.
Technical Datasheet
| Model | CL12200-01 |
| Rated Power | 2560Wh |
| Rated Capacity | 200Ah |
| Terminal Type | M8 |
| Recommended Charge Current | ≤100A |
| Recommended Discharge Current | ≤100A |
| Dimension | 522*239*219mm |
| Weight | Appx. 27.6kgs |
| Rated Voltage | 12.8V |
| Recommended Charge Voltage | 14.6V |
| Operating Temperature | 0 ~ 45°C for charging, -20 ~ 60°C for discharging,-10 ~ 45°C for storage |
| Battery Cell Type | Lithium iron phosphate (LiFePo4) |
| Charge Method | CC/CV |
| Protection | IP65 waterproof housing, built in BMS |
| Case Materal | ABS |
| Cycle performance | 3000 cycles at 80% DOD |
| Series Connection | Up to 4pcs |
| Parallel Connection | Up to 4pcs |
| Applications | Solar street light, RVs, golf carts, yachts, boats, solar energy storage system for residential, robot, etc. |
Advantages compared with lead acid battery
● Lifepo4 batteries are 70% lighter than lead-acid batteries.
● Eco-friendly. Lithium batteries do not contain harmful substances such as lead, and their materials are relatively easier to recycle and dispose of with less pollution.
● Much longer service life. The service life of lithium battery can reach 10 times that of lead-acid battery .
● Monthly self-discharge rate around 3%,much better than lead acid battery.
● Totally maintenance-free.
● The charging speed of lithium batteries is 2-4 times than that of lead-acid batteries.
Application
The 12V lithium ion battery 200ah can be used for RV, outdoor camping, solar system, off-grid electricity back up, and other lead acid replacement application.
