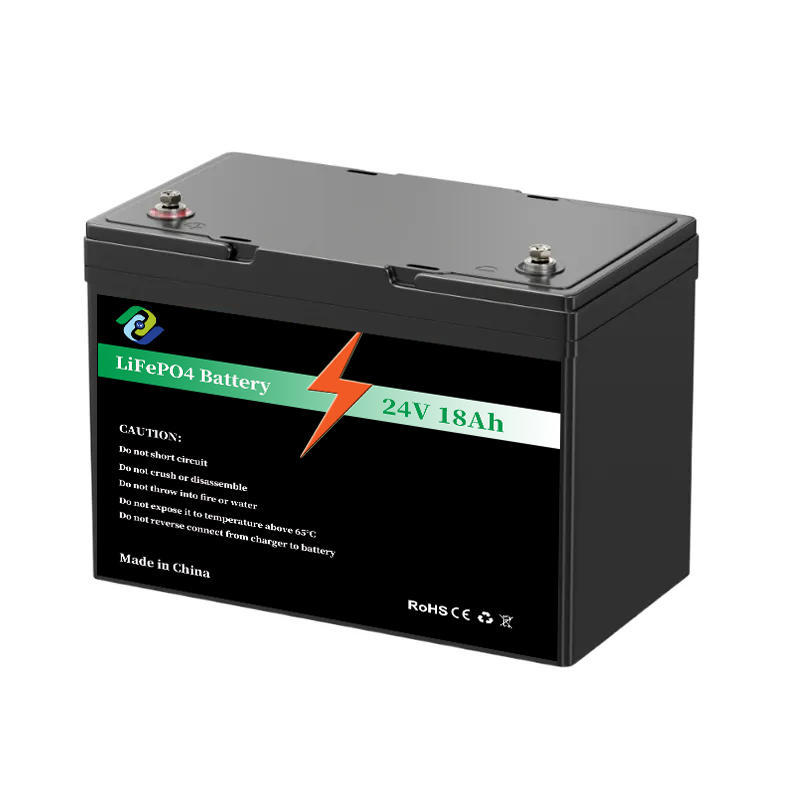

Rechargeable 24v 18ah lithium ion lifepo4 battery for golf trolley cart
Main feature of CSiT 24v 18ah lifepo4 battery

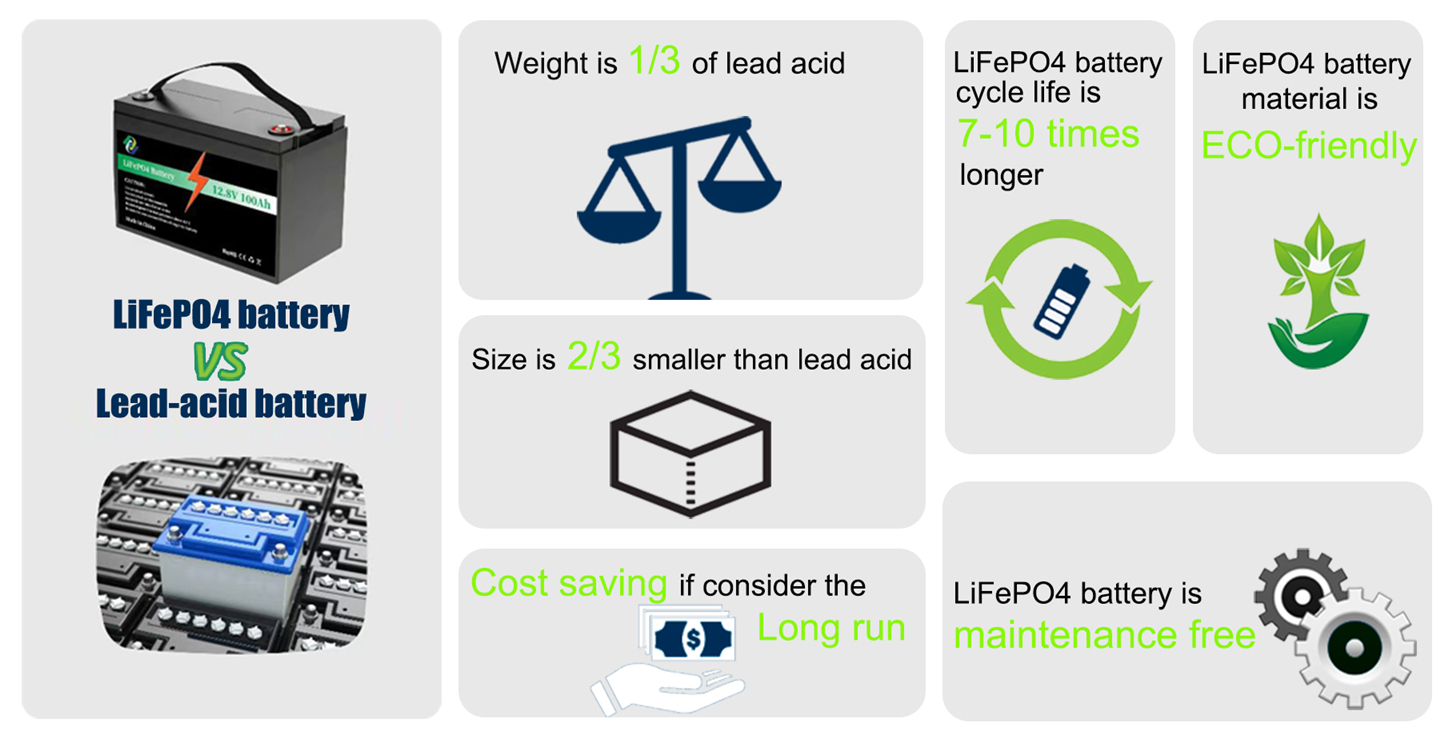

*Light weight: lifepo4 battery weight is only about 1/3 of lead-acid battery based on the same capacity and voltage.
*Long cycle life: the lithium iron phosphate battery we provide is with about 4000 times cyle life, much longer than lead acid battery.
*Reliable BMS system. The BMS provides comprehensive protection to the battery, main function including over charging/discharging protection, battery cell balancing, thermal management, over current protection and short circuit protection.
Eco-friendly. Lithium iron phosphate batteries do not contain any heavy metals such as lead or other harmful substances, so they do not pollute the environment during production, use, and recycling.
Customized. The battery voltage, capacity, dimension, discharge current and housing can be customized, blue tooth and LCD display can be added if you need.
Technical Datasheet
| Model | CL24018-01 |
| Rated Power | 460.8Wh |
| Rated Capacity | 18Ah |
| Terminal Type | M6 |
| Recommended Charge Current | ≤9A |
| Recommended Discharge Current | ≤18A |
| Dimension | 197*165*169mm |
| Weight | Appx. 4.5kgs |
| Rated Voltage | 25.6V |
| Recommended Charge Voltage | 28.8V |
| Operating Temperature | 0 ~ 45°C for charging, -20 ~ 60°C for discharging,-10 ~ 45°C for storage |
| Battery Cell Type | Lithium iron phosphate (LiFePo4) |
| Charge Method | CC/CV |
| Protection | IP65 waterproof housing, built in BMS |
| Case Materal | ABS |
| Cycle performance | 4,000- 6,000 cycles at 80% DOD |
| Series Connection | Up to 4pcs |
| Parallel Connection | Up to 4pcs |
| Applications | Solar street light, RVs, golf carts, yachts, boats, solar energy storage system for residential, robot, etc. |
Product details
24v 18ah lithium phosphate battery mainly includes below parts:
ABS housing: durable with the thickness of 1.5mm
Terminal: high quality terminal for connecting the charger and application device, charging and discharging share the same connector.
Smart BMS: to protect and monitor the battery.
LiFePO4 cell: prismatic or cylinder, various models for choice.
Application
The 24V lead acid replacement lithium battery can be mainly used on golf trolley cart, golf cart, RV campers, fishing boats, etc.
