Economical 60v lithium battery for electric bike and e-motorcycle
Advantages of CSiT 60 volt battery for electric bike
High quality cells: the cells inside is high-quality automotive battery cells, with a 30% increase in endurance and a 50% increase in lifespan.
Smart BMS protection. Integrated BMS with the function of protecting the battery from over current, over charging/discharge, short circuit, over temperature, balancing function, anti-reverse connection, etc.
Strong driving power. Charge one time , working for a whole day for delivery vehicle.
Stable working performance. Use grade A first rating cells such as CATL, EVE, GOTION to make sure a stable working performance during the whole service life.
Support GPS. You can choose to add GPS or not.
Technical Data sheet
| Battery Model | ICE60020 | ICE60030 | ICE60055 | ICE60100 |
| Nominal Voltage | 60V | |||
| Nominal Capacity | 20Ah | 30Ah | 55Ah | 100Ah |
| Rated Energy | 1200Wh | 1800Wh | 3300Wh | 6000Wh |
| Dimension | 225*165*180mm | 270*160*180mm | 335*160*220mm | 380*220*195mm |
| Housing | Aluminum | |||
| Working Voltage Range | 50~73V | |||
| Standard Charge Current | 4A | 6A | 11A | 20A |
| Max. Charge Current | 10A | 15A | 27.5A | 50A |
| Standard Discharge Current | 4A | 6A | 11A | 20A |
| Max. Disharge Current | 40A | 60A | 100A | 100A |
| Charge current of Charger provided together | 3A | 5A | 10A | 10A |
| Connector | Customized | |||
| Charge Voltage | 73V | |||
| Dischage Cut-off Voltage | 50V | |||
| Charge Temperature | 0~45°C | |||
| Discharge Temperature | -20~65°C | |||
| Cyle Life | ≥1000 times | |||

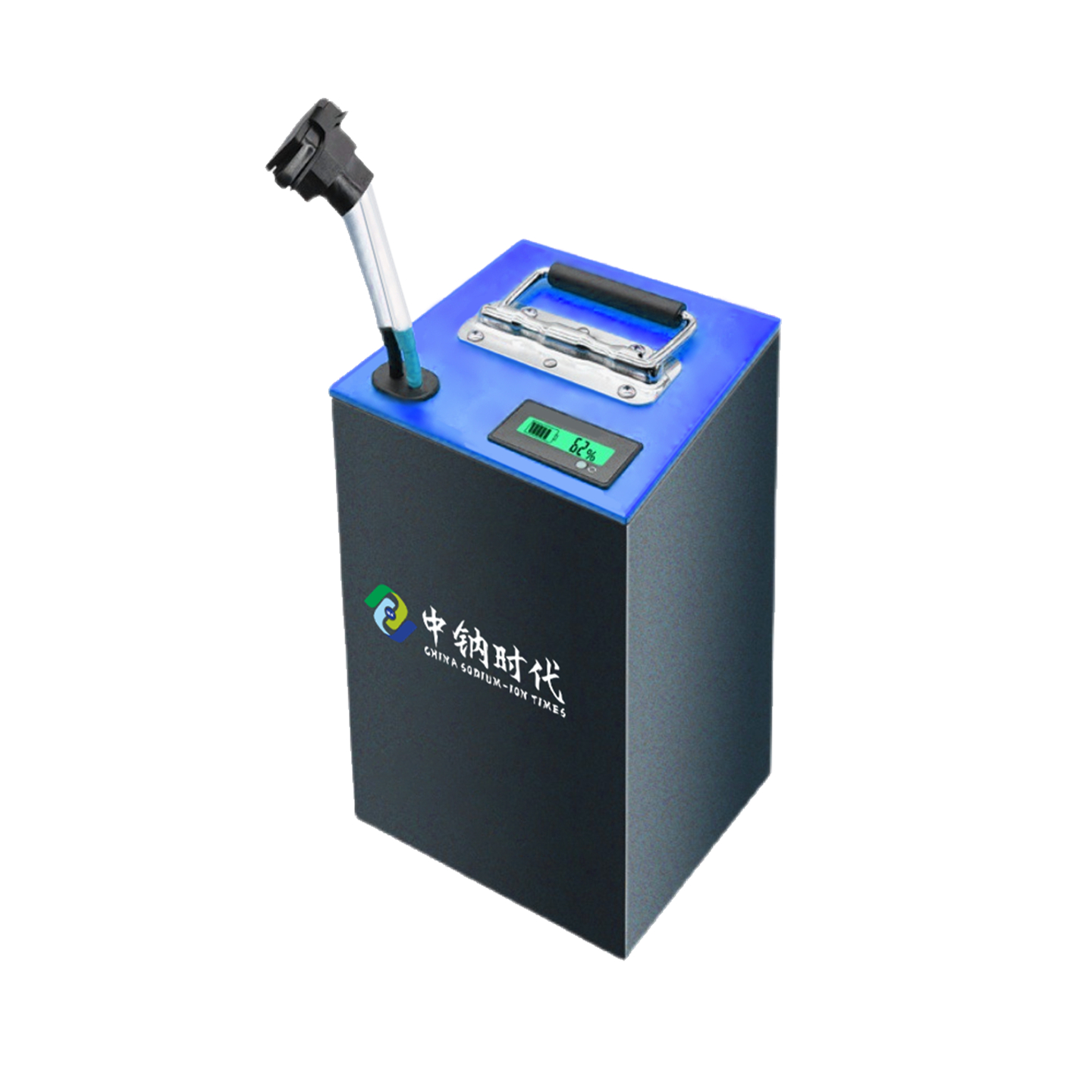

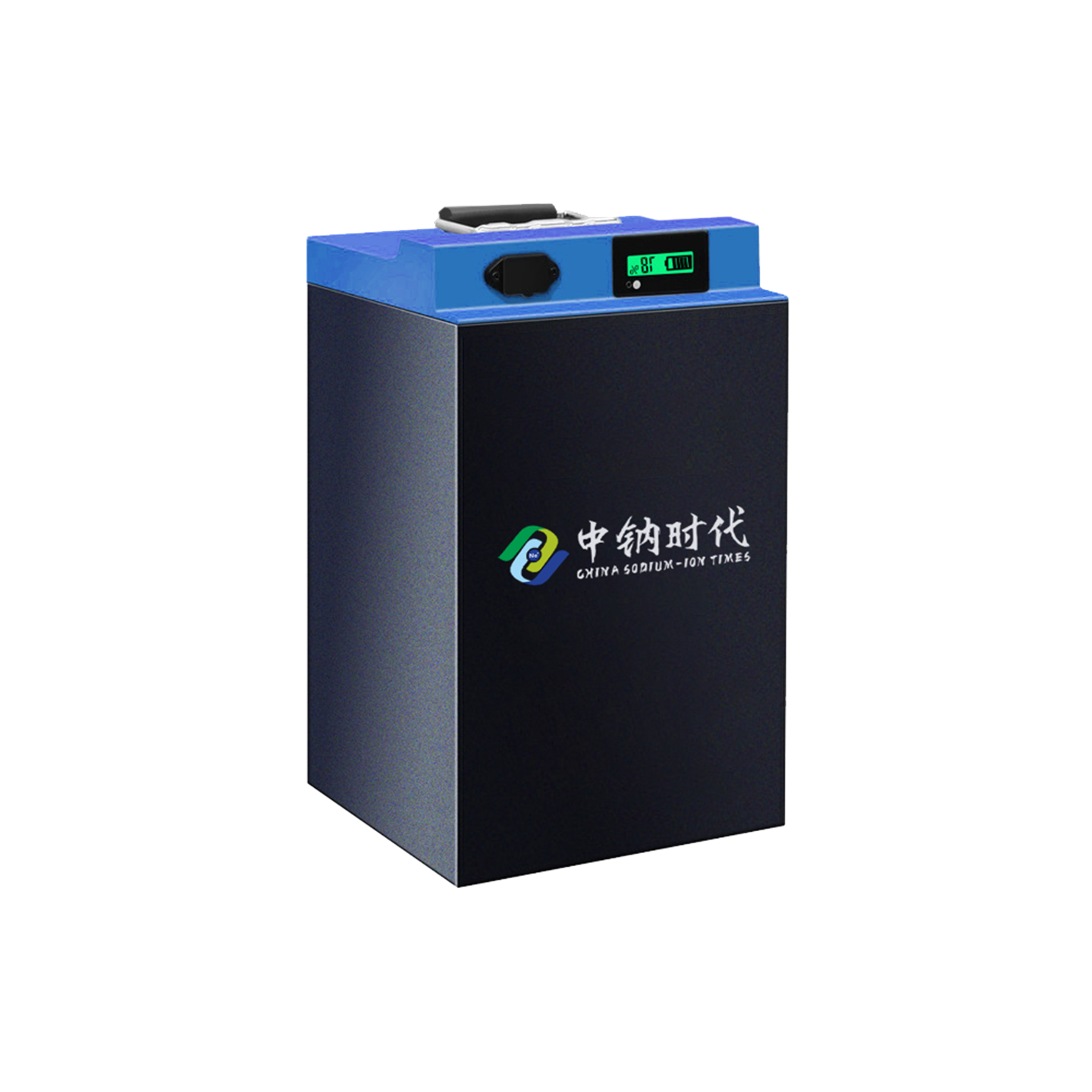

Product details
60V e-bike battery mainly includes below components:
Iron housing. Strong and durable.
Stainless steel handle.
Lithium iron phosphate lifepo4 battery pack and BMS inside.
LCD display to show the charging status.
Charge and discharge connector, customized.
Application
CSiT 60V electric bike battery can mainly be used for electric bikes, electric tricycles, e-motorcycles, etc.
