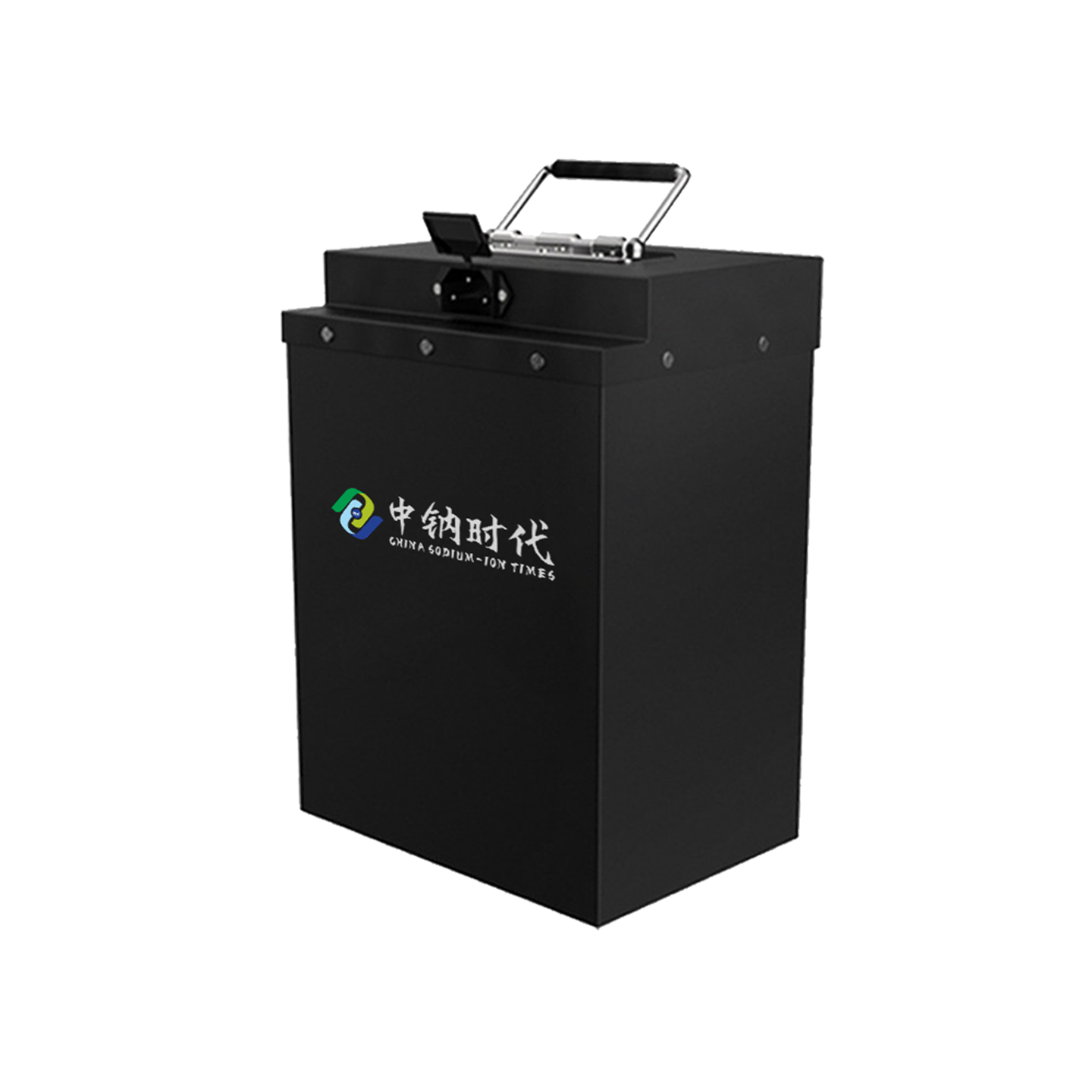

72v lithium battery for electric bike and motorcycle
Advantages of CSiT 72 volt ebike battery
Built-in BMS. With basic protection function such as short circuit protection, over discharging/charging , over current to make sure the safety during working, and it’s with active balancing to enhance the battery cycle life.
These automotive battery cells are of high quality, featuring a 30% increase in stamina and a 50% increase in longevity
High quality. Use grade A first rating cells such as Panasonic, Sanyo, Samsung to make sure longer back up time and stable working performance.
1000+ cycle life, high discharge rate.
Charge one, run for a whole day.
Technical Data sheet
| Battery Model | ICE72020 |
| Nominal Voltage | 72V |
| Nominal Capacity | 20Ah |
| Rated Energy | 1440Wh |
| Dimension | Customized |
| Housing | Iron |
| Working Voltage Range | 60~84V |
| Standard Charge Current | 4A |
| Max. Charge Current | 10A |
| Standard Discharge Current | 4A |
| Max. Disharge Current | 40A |
| Connector | Customized |
| Charge Voltage | 84V |
| Dischage Cut-off Voltage | 60V |
| Charge Temperature | 0~45°C |
| Discharge Temperature | -20~65°C |
| Cyle Life | ≥1000 times |

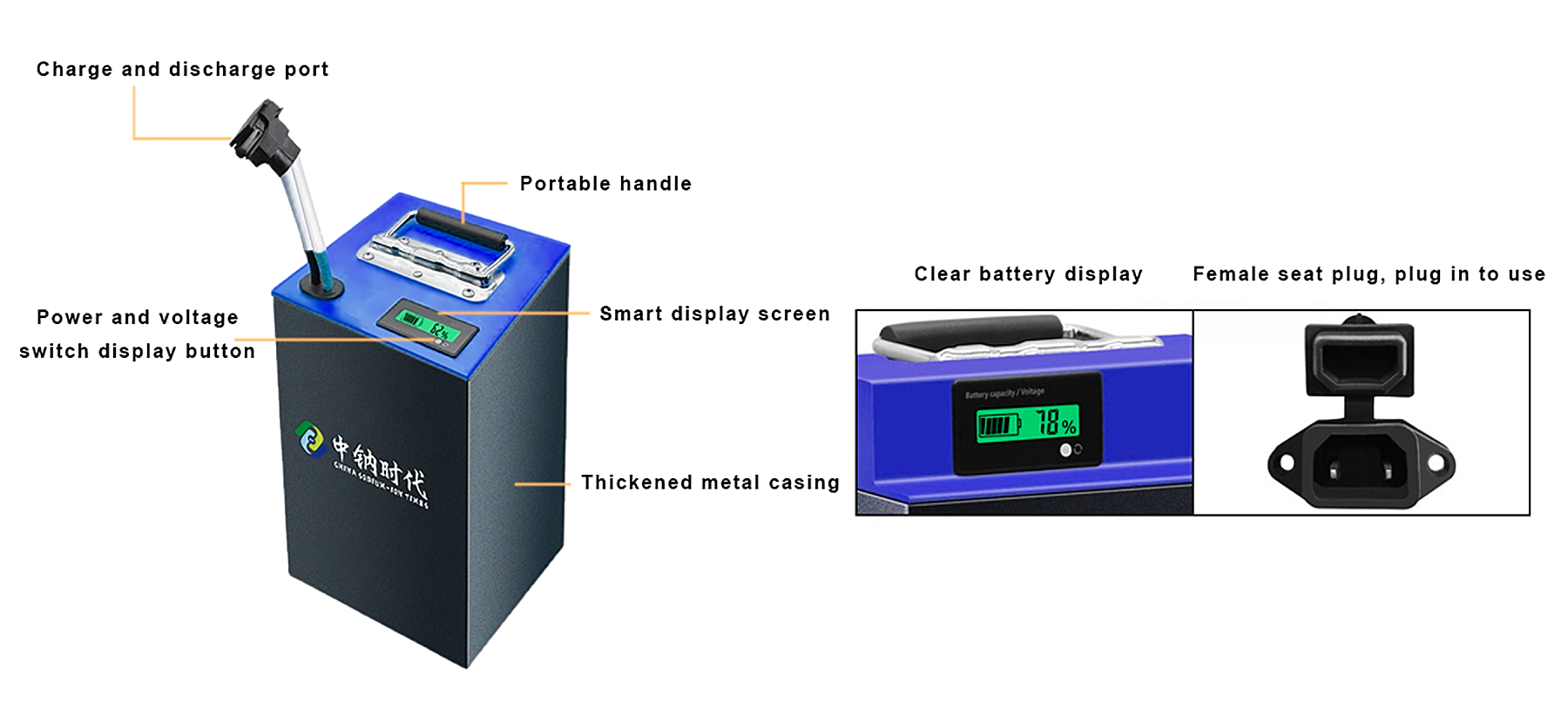

Product details
CSiT 72v lithium ion battery for electric bike mainly includes below components:
Housing: 1.5mm sun-exposed stainless steel fully welded enclosure, more durable than the common iron shell on the market, rust-resistant.
Interface:Integrated charging and discharging port, support fast charging and discharging.
Portable and comfortable handle: Charge the battery right after work when parking; the lithium battery is lightweight, has a large capacity, is stable, safe, and durable.

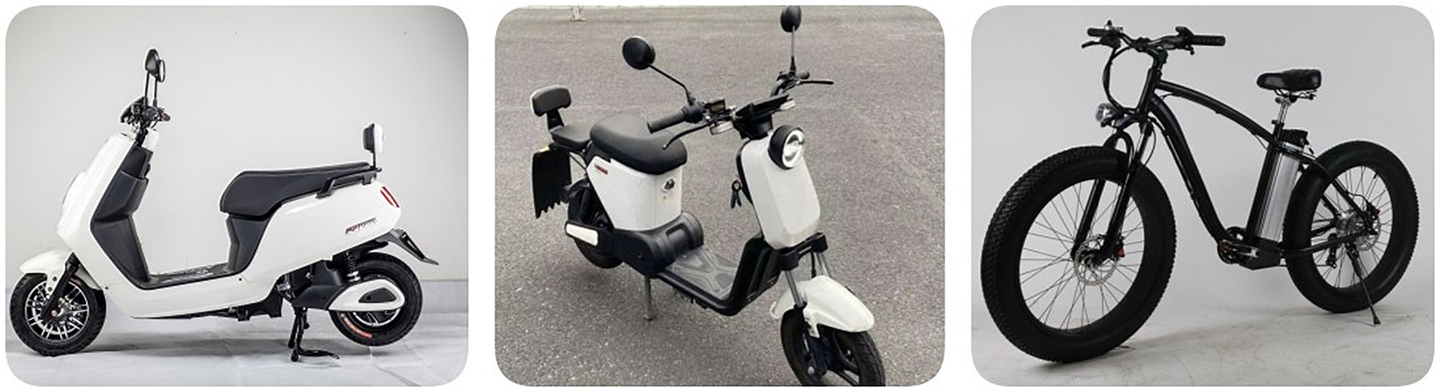

Application
CSiT 72v battery for electric bike can mainly be used for electric bikes, electric tricycles, e-motorcycles, etc.
