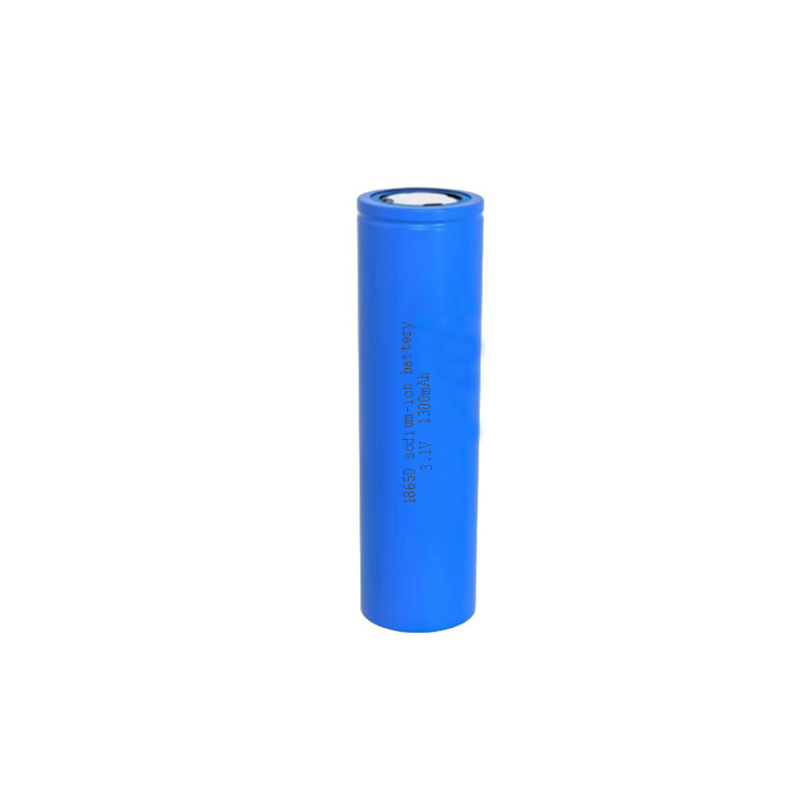

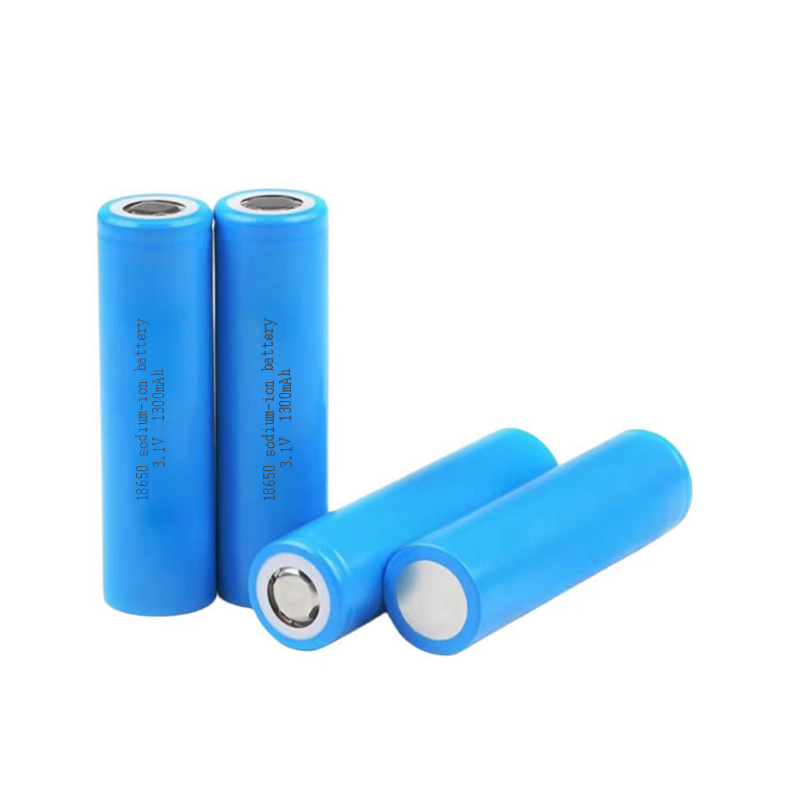

Economical 18650 Cylindrical Sodium-ion Battery Cells for two wheeler
Main Feature of CSiT 18650 sodium-ion batteries
● Support fast charge. Sodium ion battery cell could support 3-4C fast charge rate, with charging management system integrated, it could be charged 70% capacity within 15 minutes.
● Support -40℃ low temperature discharge. The electrolyte and electrode materials of sodium-ion batteries mainly adopt materials with more stable physical properties, thus exhibiting excellent performance in extremely low-temperature environments.
● Long cycle life. CSIT cylinder sodium-ion battery cycle life is over 2000 times,which is much longer than NCM lithium ion battery.
● Cost saving. Sodium is one of the most abundant elements in the Earth's crust, with its abundance far exceeding that of lithium.This characteristic gives sodium-ion batteries a significant advantage in terms of raw material supply, providing a solid foundation for large-scale production and widespread application.
● Good safety performance, It won’t explode even puncture it with a needle.
● Cylinder shape, easy to connect in series and parallel, discharge rate could reach 20C max.
Technical Datasheet
| Cell Model | 18650-1300mAh | 18650-1300mAh | 18650-1400mAh |
| Nominal Voltage | 3.10V | ||
| Type | High Rate | High Capacity | High Capacity |
| Nominal Capacity | 1300mAh | 1300mAh | 1400mAh |
| Energy Density | ≥100Wh/kg | ≥100Wh/kg | ≥110Wh/kg |
| Volumetric Energy Density | ≥240Wh/L | ≥240Wh/L | ≥260Wh/L |
| Dimension | H*D=65.3*18.3mm | H*D=65.3*18.3mm | H*D=65.3*18.3mm |
| Inner Resistance | ≤20mΩ | ||
| Weight | Appx. 30g | ||
| Cyle Life | ≥3000 times | ≥2000 times | ≥2000 times |
| Standard Charge Current | 0.5C | ||
| Standard Discharge Current | 0.5C | ||
| Max Con. Discharge Current | 5C | 20C | 3C |
| Shape | Cylindrical | ||
| Charge Voltage | 3.95±0.05V | ||
| Dischage Cut-off Voltage | 1.50±0.05V | ||
| Working Voltage Range | 1.5~4.0V | ||
| Charge Method | CC/CV | ||
| -20℃ Capacity retention | ≥90% | ||
| -40℃ Capacity retention | ≥70% | ||
| Charge Temperature | -10~45°C | ||
| Discharge Temperature | -40~80°C | ||
| Storage Temperature | Less than 1 year:-10~25°C; Less than 3 months:-10~40°C | ||
Product Details
CSiT 18650 sodium battery includes the cathode , anode, separator, electrolyte, and current collector:
Cathode material: layered oxide
Anode material: The anode materials mainly include carbon-based, titanium-based, organic, and alloy-based materials, etc.
Separator:The main materials of the separator include polyethylene (PE) and polypropylene (PP) membranes.
Electrolyte: the main electrolyte we use is NaClO4, NaPF6
Application
CSiT sodium ion batteries 18650 can be mainly used for:
Low speed vehicle;
Energy storage system;
Consumer electronics;
Power tools;
Medical devices.
Etc...
