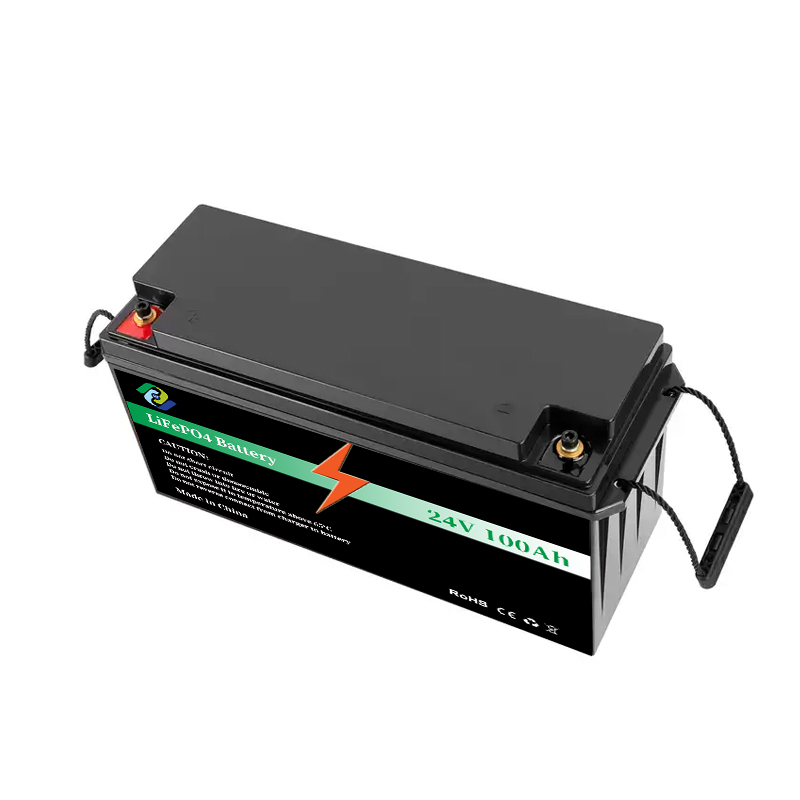

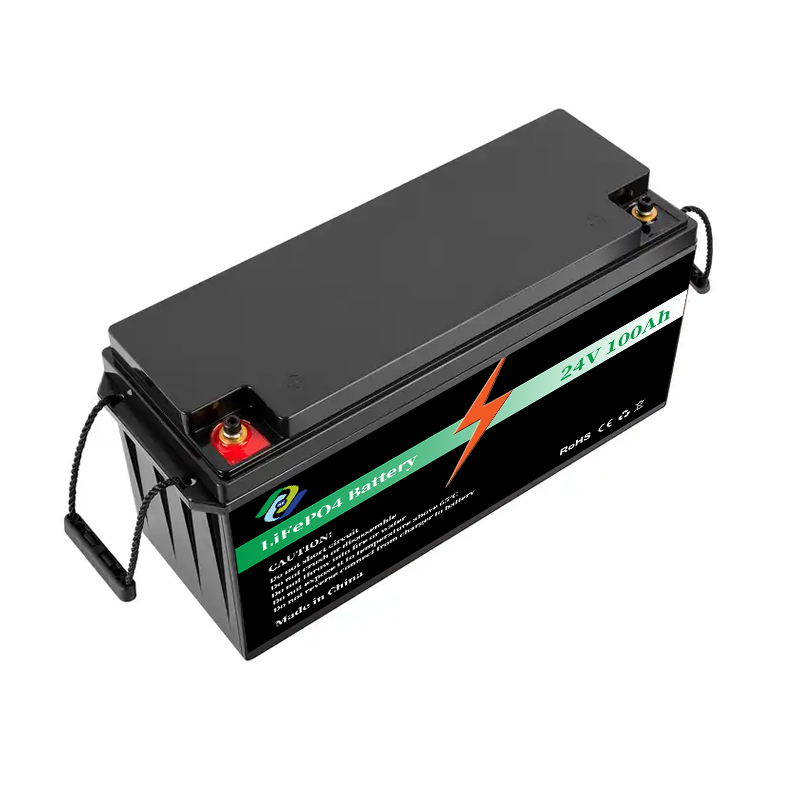

Long cycle 24v 100ah lithium ion battery for energy storage
Why use lithium battery to replace lead acid?
● Lighter Volume and Weight: Lithium batteries are much smaller in both volume and weight compared to lead-acid batteries. The volume of a lithium battery is typically 1/3 that of a lead-acid battery, which not only reduces the overall weight of the device but also saves space.
● Longer Lifespan: The cycle life of lithium batteries is significantly longer than that of lead-acid batteries. The cycle life of ordinary lead-acid batteries is approximately 300-600 times, while that of lithium iron phosphate batteries can reach up to 4000 cycles. This means that lithium batteries have a longer service life, reducing the frequency and cost of battery replacement.
● Higher Charge-Discharge Efficiency: The charge-discharge efficiency of lithium batteries can exceed 97%, while that of lead-acid batteries is only about 80%. This means that lithium batteries have less energy loss during charging and discharging, especially in applications where frequent charging and discharging are required, lithium batteries perform even better.
● Higher Energy Density: The energy density of lithium batteries is generally 200-260Wh/g, while that of lead-acid batteries is only 50-70Wh/g. This means that lithium batteries can store and release more electrical energy in the same volume or weight.
● More Environmentally Friendly: Lithium ion battery raw materials is eco-friendly and the production process is more environment.
Technical Datasheet
| Model | CL24050-01 | CL24100-01 | CL24120-01 | CL24200-01 |
| Rated Power | 1280Wh | 2560Wh | 3072Wh | 5120Wh |
| Rated Capacity | 50Ah | 100Ah | 120Ah | 200Ah |
| Terminal Type | M8 | |||
| Recommended Charge Current | ≤25A | ≤50A | ≤60A | ≤100A |
| Recommended Discharge Current | ≤50A | ≤100A | ≤100A | ≤100A |
| Dimension | 328*172*235mm | 522*239*219mm | 522*239*219mm | 490*265*215mm |
| Weight | Appx. 14kgs | Appx. 29kgs | Appx. 31kgs | Appx. 38kgs |
| Rated Voltage | 25.6V | |||
| Recommended Charge Voltage | 28.8V | |||
| Operating Temperature | 0 ~ 45°C for charging, -20 ~ 60°C for discharging,-10 ~ 45°C for storage | |||
| Battery Cell Type | Lithium iron phosphate (LiFePo4) | |||
| Charge Method | CC/CV | |||
| Protection | IP65 waterproof housing, built in BMS | |||
| Case Materal | ABS | |||
| Cycle performance | 4,000- 6,000 cycles at 80% DOD | |||
| Series Connection | Up to 4pcs | |||
| Parallel Connection | Up to 4pcs | |||
| Applications | Solar street light, RVs, golf carts, yachts, boats, solar energy storage system for residential, robot, etc. | |||
Application
The 24V 100ah Lead-acid Replacement Lithium Battery can be mainly used on golf cart, UPS system, fishing boat, RV campers, etc.
