Wall mounted battery
5kwh battery
residential energy storage battery

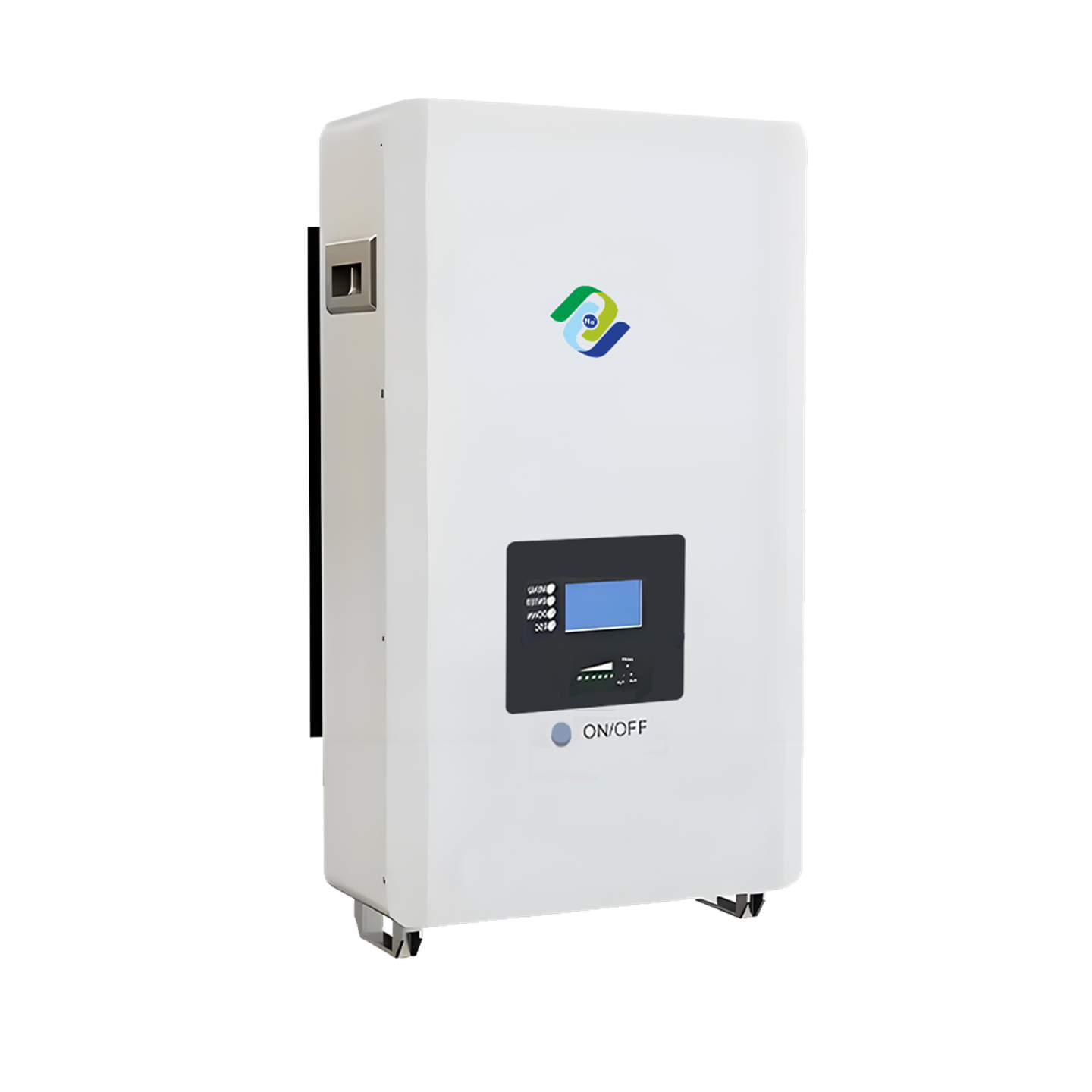

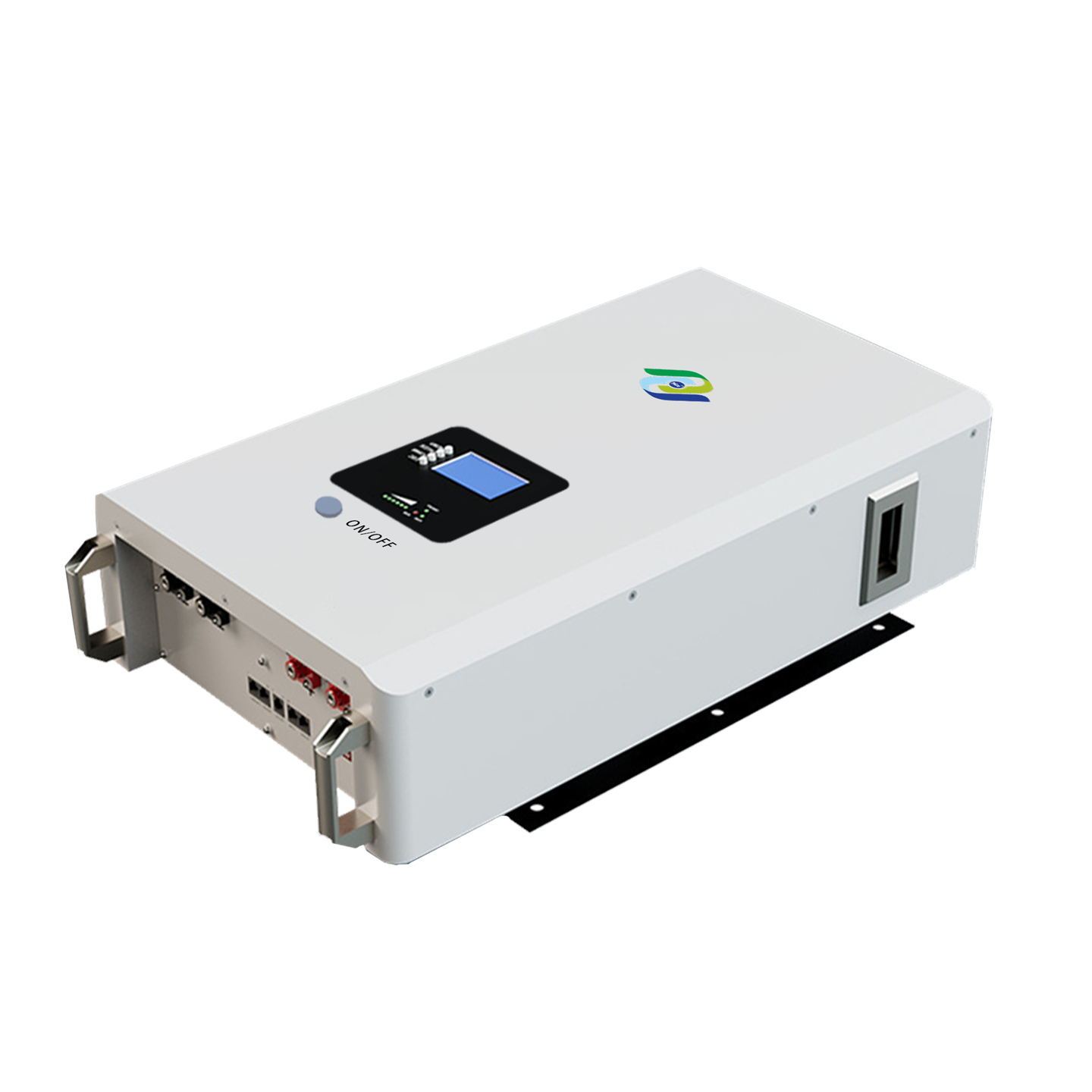

Wall mounted 5kwh battery storage for home

Nominal Voltage: 51.2V

Rated energy: 5kWh

Type: wall mounted

Cell: Prismatic LiFePO4 cells

Max con. charge power: 5kW

Warranty: 10 years

Cycle life: ≥6000 times

Protection rating: IP21

CSiT Wall mounted 5kwh battery storage for home is with 10 years warranty, grade A cells with at least 6000 times cycle life, it can be mounted on the wall to save space, the metal housing we use is with at least 1.8mm thickness, durable and good protection for the battery. OEM/ODM service are available.

    Contact us Whatsapp Email
    product details

    Main Feature of CSiT Wall mounted 5kwh battery storage for home

    Long cycle life: use grade A CATL cells, cycle life is 6000 times.
    Flexible Capacity: Max.4pcs in Parallel to extend capacity.
    Safe &Reliable: Lithium Iron Phosphate (LFP) Cell with smart BMS protection.
    Easy Installation: Quick plug in +/- and parallel connection.
    Long warranty time: we offer 10 years warranty , no need to worry about after sales problem.
    Certification: CE, IEC, UN38.3 certified.
    Smart BMS: it could protect the battery from over charging/discharging, over current and short circuit, and monitor the status of battery.
    High efficiency: competitive 98% round-trip efficiency.
    main feature

    Technical Datasheet

    Model  FHB-10KLV-01
    Type Power wall
    Capacity 5 kWh
    Rated Voltage 51.2 V
    Max Con. Charging Power 5kW
    Max Con. Discharge Current 100A
    Size 745*460*165mm
    Weight (with platform and BCU) 54kg
    Operating Temperature -10 ~ 50°C
    Battery Cell Type lithium iron phosphate  LiFePo4   (cobalt-free)
    Protection Rating IP21
    Round-trip Effeciency ≥ 95%
    Scalability Max of 15 modules in parallel (total of 75 kWh)
    Cycle performance > 80% remainance after 6,000 cycles
    Applications on grid / on grid + backup / off grid
    Communication CAN / RS485
    CE  IEC 62619: 2017, UN38.3
    EMC EN61000-6-1, EN61000-6-3
    RoHs yes
    Compatible Inverter Brands CSIT - FHI-XXK1P-EU01 Hybrid Solar Inverters;
    Support other brands: PACE / PYLON / Growatt / Voltronic / Schneider / Luxpowertek / WOW / VISION / GoodWe / SMA /
    Sorotec / STUDER / SofarSolar / GINLONG / MUST / Victron / SRNE

    Product details

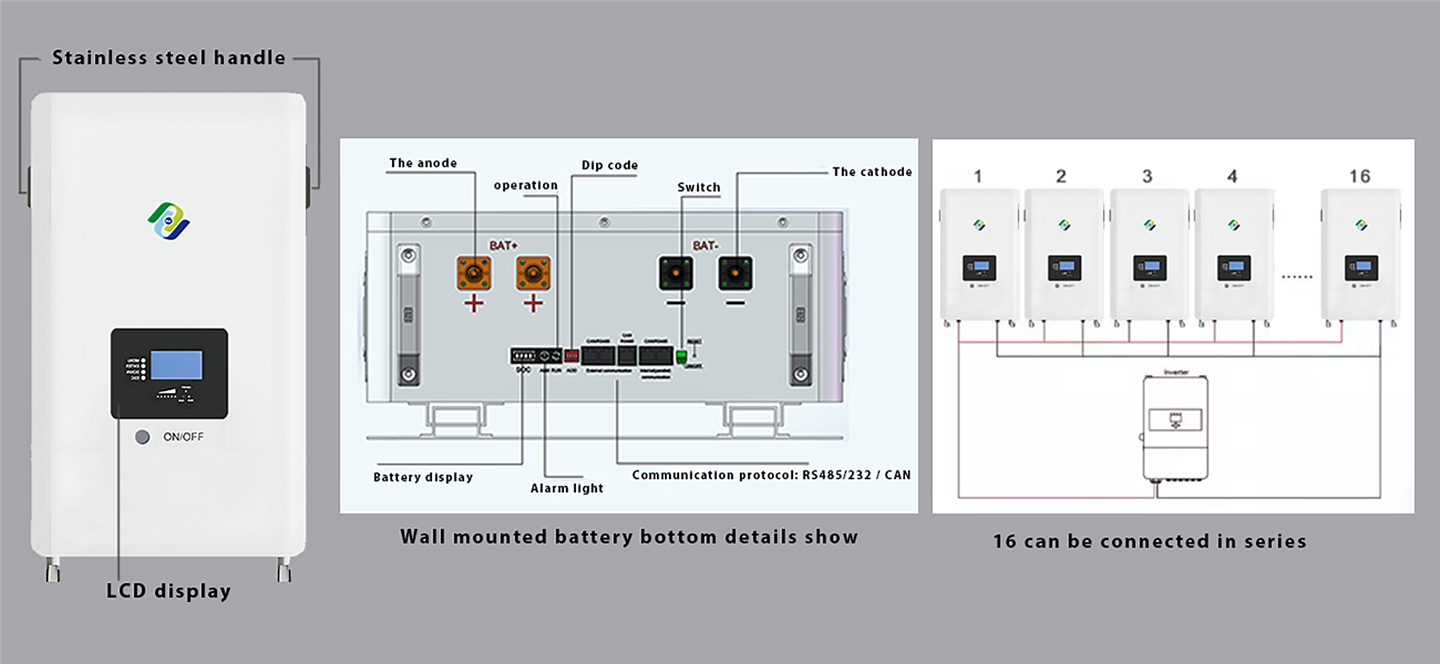

    There are a lot of interfaces included in CSiT wall mounted 51.2v power wall battery , such as positive/negative external terminal to connect the battery with each one and with inverter, LCD display to show the battery status including battery health, voltage, capacity left, cycle life, etc. , CAN/RS485 interface to communicate data between inverter and battery, and between battery and other device. See below details:
    details

    Application

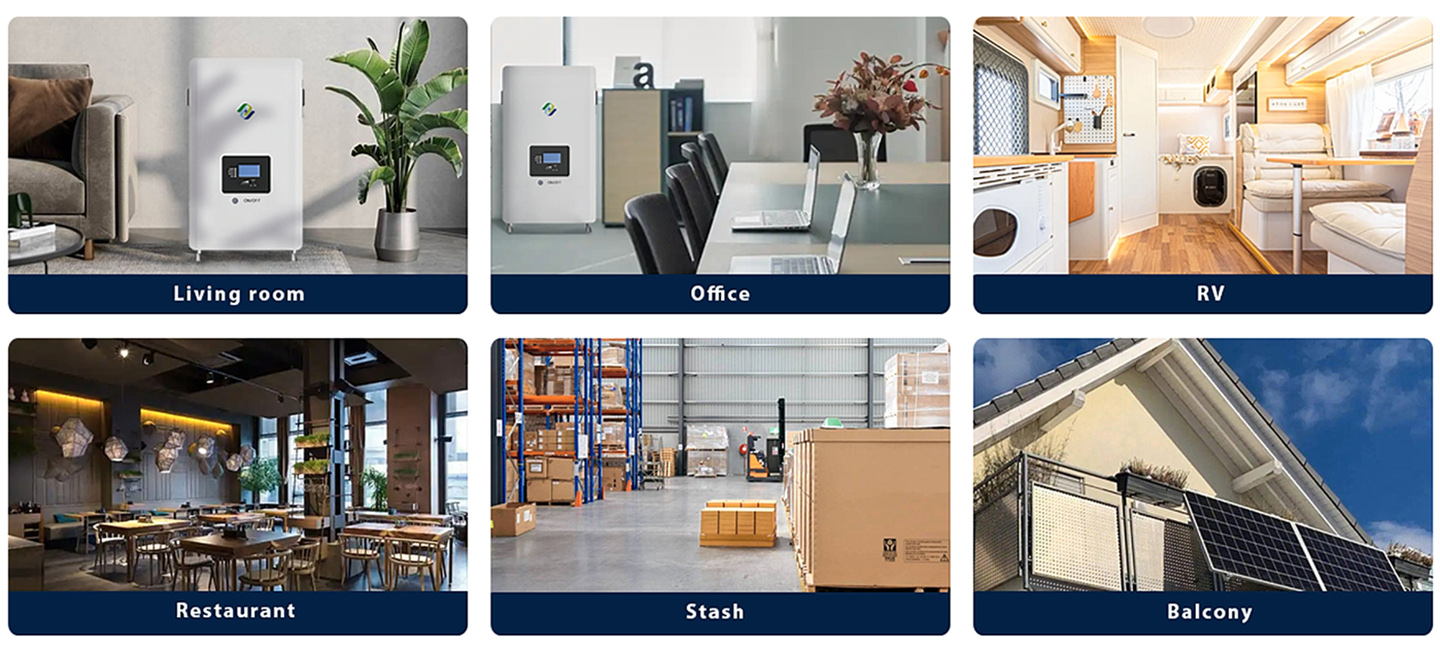

    The wall mounted 100ah lifepo4 battery can be used on residential ESS(energy storage system) , communication based station and UPS system/data center backup.
    application

    What’s included in a residential solar system?

    LiFePO4 Battery pack
    Inverter
    PV panel
    Electric meter
    Load: home electric appliances
    Grid
    4 residential energy storage sytem working diagram
